FD56.10

FD56.10 resistance spin level switch, suitable for most solid particle powder measurement. Used for raw materials in the production process, limit control for storage and transportation of products and other materials.
Type of sample ：FD56.10-207020A.400.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High stability motor and microswitch

Double bearing design, smooth operation, long service life

Adopt integrated anti-loose structure design, easy to replace and maintain

Available in 304/316L stainless steel

The protection level reaches IP65

Optional explosion-proof, wide range of use

Basic parameters

Measuring mediaSolid particle powder

Medium density≥0.3g/cm³

Probe length100…1000mm ( arc blade≥180）

Electrical parameters

Power supply24VDC / 220VAC

Contact capacity SPDT 5A/250V AC

Mechanical parameters

Process connectionFlange / thread

Spindle and blade materials304/316L

Leaf blade rotation speed1 R. P. M

Case material of the watch headAL

Cable inletM20×1.5

Environmental conditions

Process temperature﹣20…+70℃ /﹣20…+400℃

Environment temperature﹣40…+85℃

Protection classIP65

Explosive-proof gradeExd II CT6 Gb；ExtD A21

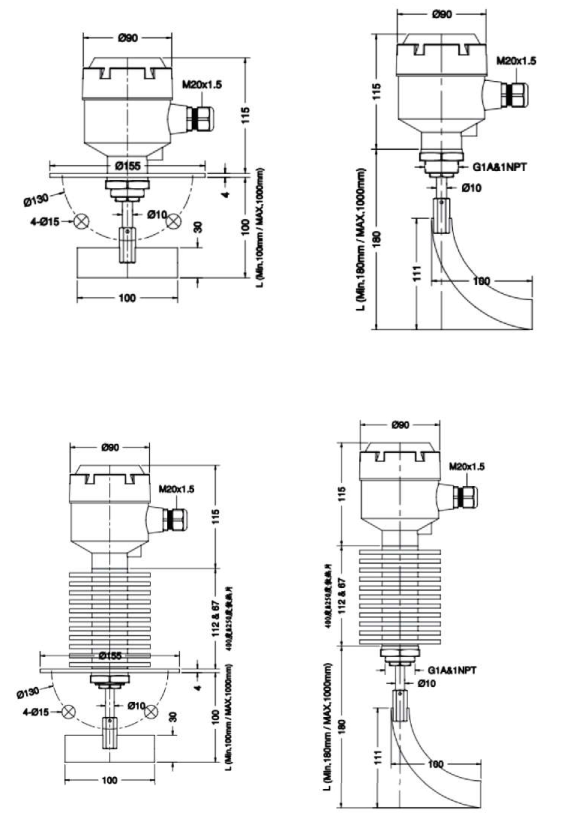

Overall dimensions

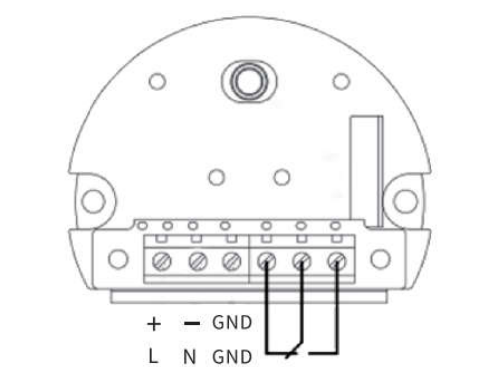

Wiring diagram
