Φ06 series DC2 wire proximity switch, the product universal strong, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry, the minimum induction distance is 2mm.
Type of sample 1:PR00.02-Φ06D10S2-Y.*
Type of sample 2:PR01.04-Φ06D10S2-YE.*

For detailed product selection, please contact us Return
Function & Features

Smooth cylindrical appearance with diameter of Φ6.5

Stainless steel case

Induction distance 2...4mm, flush/non-flush mounting

With 360° visible signal output indicator light

Short circuit protection function, power supply is connected to reverse protection

The signal output is DC without polarity

Flexible configuration, cable or connector or wire connector output

Through up to 1 million life testing tests

All components and circuits are tested in harsh and complex electromagnetic environments

Basic parameters
TypeStandard / Economy(optional)
Detect distance Standard:flush 2mm
Economy:flush 2mm ,unshielded 4mm
Installation methodFlush / unshielded(optional)
Switching modeNO / NC(optional)
Repeated accuracy≤5%
Range of temperature drift≤10%
SignalYellow LED indicator light
Meeting standardsIEC60947-5-2,UL508
Electrical parameters
Power supply10…30V DC
Signal outputDC nonpolar
Voltage range10…60V
Voltage drop≤2.0V
Output current≤200mA
No-load current≤30mA
Residual current≤100μA
Switching frequency500Hz / 1000Hz / 5000Hz
Electric protection Short circuit protection, power supply protection
Mechanical parameters
Standard gauge plate6.5×6.5mm²
Shell/test surface materialStainless steel / PA12
Connection type2m cable / connector
Weight(connector/cable)5g / 60g
Environmental conditions
Operating temperature﹣25…+70℃
Storage temperature﹣40…+75℃
Operating humidity<98%RH(at 25℃)
Protection classIP67

Overall dimensions

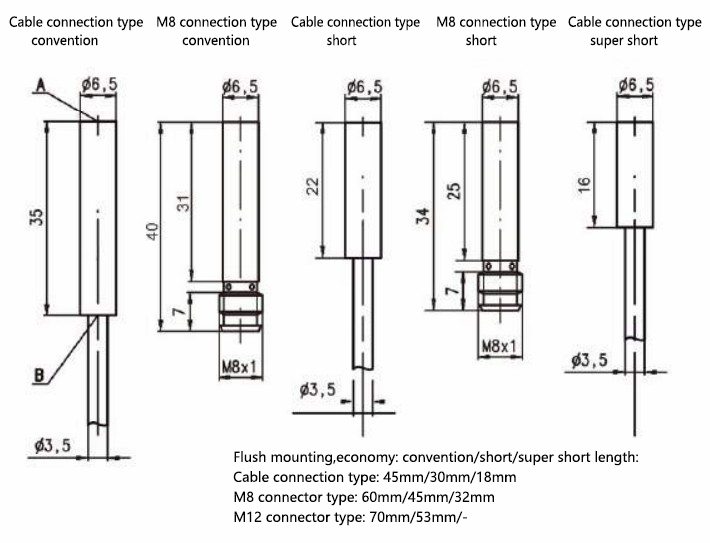

                                      Flush mounting standard type

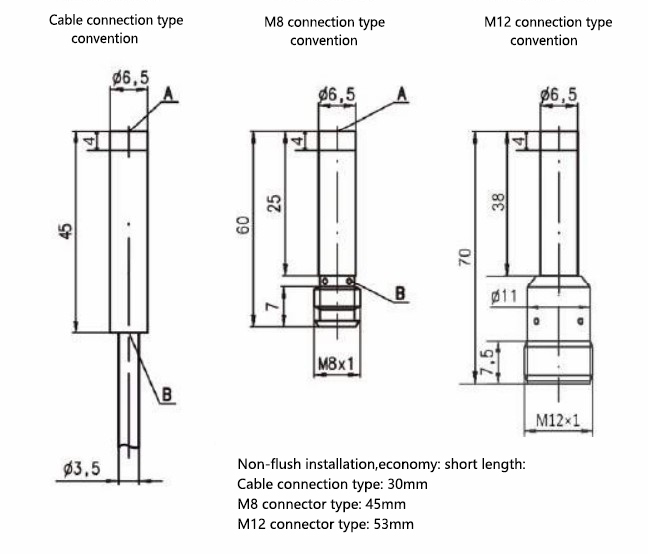

                                      Non flush mounting standard type

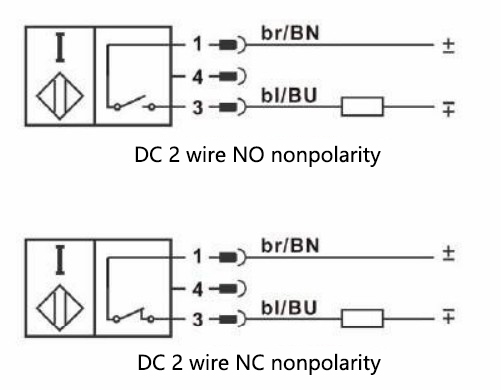

Wiring diagram
