FD-MS02-*T

FD-MS02-*T series magnetic switch is suitable for standard rod cylinder, ISO meter cylinder.
Type of sample：FD-MS02-2TS2.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Standard rod cylinder, ISO meter cylinder, integrated fixture

FD-MS01 series of upgrade, no need to select another fixture

Electronic normally open type

Push-pull type

High positioning accuracy, strong anti-interference ability

Nimble

Basic parameters

Switching LogicElectronic, normally open type

Induction switch typePush-pull type

indicator lampRed LED

Sensitivity of induction40…800 gauss

Maximum switching frequency5000Hz

Protection CircuitPower supply polarity reverse protection;
Surge absorption protection

Electrical parameters

Power supply5…30VDC

Switching current100mA Max

Maximum contact capacity3W Max

Internal consumption current7.5mA Max@24V

The residual pressure drop1V Max@100mA DC

leakage current0.01mA Max

Mechanical parameters

CableΦ2.9，3C black oil resistant PVC

Impact resistance50G

Vibration9G

Environmental conditions

Operating temperature﹣10…70℃

Protection classIP67

Overall dimensions

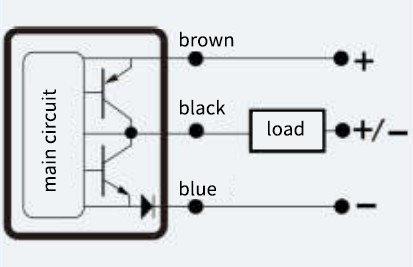

Wiring diagram
