FD-ADT5 area detection sensor is specially used for the detection of rod and wire with small volume and unfixed position.It is often used for the position detection of wire and bar finishing rolling area, the detection of metal head and tail in bar and profile, and the detection of small objects on the wide roller table.
Type of sample：FD-ADT5-400PC1.*
Designed for iron and steel, metallurgy, non-ferrous metals and other heavy industry development and use, collision resistance, impact resistance
Detection distance 0...3000mm, no blind spots
A variety of detection height is optional, up to 1200mm
Anti - electromagnetic, anti - interference ability
Optional water cooling jacket
A variety of switching output
Adapt to dusty, steam and other harsh environment
IP66 aluminum shell

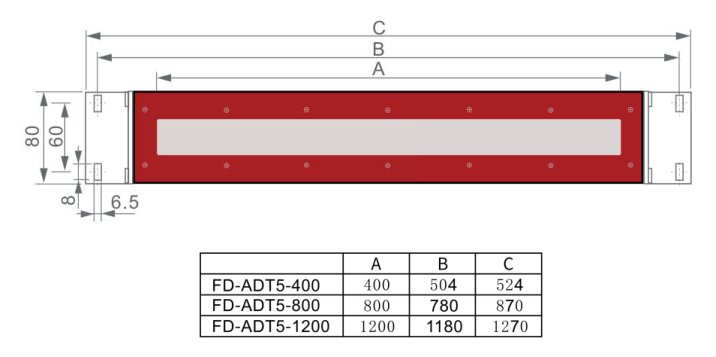

Overall dimensions

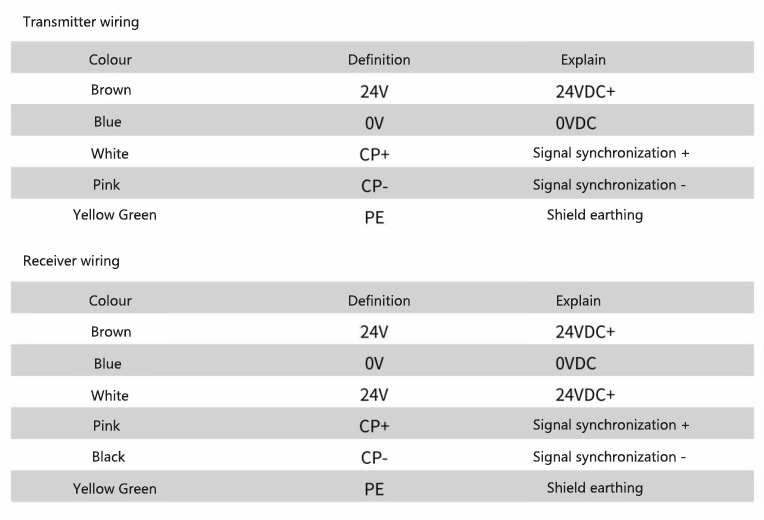

Wiring diagram
