PA202

PA202 small pressure transmitter, widely used in aerospace, petroleum, chemical, metallurgy, electric power, hydrology and other industries,Realize the measurement and control of process pressure.
Type of example：PA202.02A1110.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Measuring medium: all kinds of gas, all kinds of liquid (water, oil, industrial solution, etc.)

The maximum quantity is up to 1000bar

Output signal: current 4...20mA or voltage 0...10V is optional

Compact stainless steel design

Resistance to strong impact, vibration and corrosion

Basic parameters

Measuring mediumGas, liquid, oil and other media compatible
with the material of the contact part

Measuring range0…1000bar（max）

Nonlinearity Typical ±0.15%FS，max ±0.25%FS

HysteresisTypical ±0.1%FS，max ±0.15%FS

RepetitionTypical ±0.15%FS，max ±0.25%FS

long-term stabilityTypical ±0.1%FS/year；max ±0.2%FS/year

Response time＜1ms

load resistance≤（U-15）/0.02Ω≤（U-15）/0.02Ω＞5K

Over-load ability1.5 times the range

Pressure datumGage pressure

Electrical parameters

Power supply15…30VDC

Output singal4…20mA（two wire） 0…10V（three wire）

Mechanical parameters

MaterialShell：stainless steel；
diaphragm：stainless steel 316L

Weight80…120g

Resistance to vibrationIEC68-2-6: 20m/s² 10…2000Hz

Shock resistanceIEC68-2-27: 100g/11ms

Environmental conditions

HumidityMax 100%RH non condensing

Operating temperature（medium）﹣40…+125℃

Operating temperature（environment）﹣40…+105℃

Storage temperature﹣40…+125℃

Protection classIP65/IP67

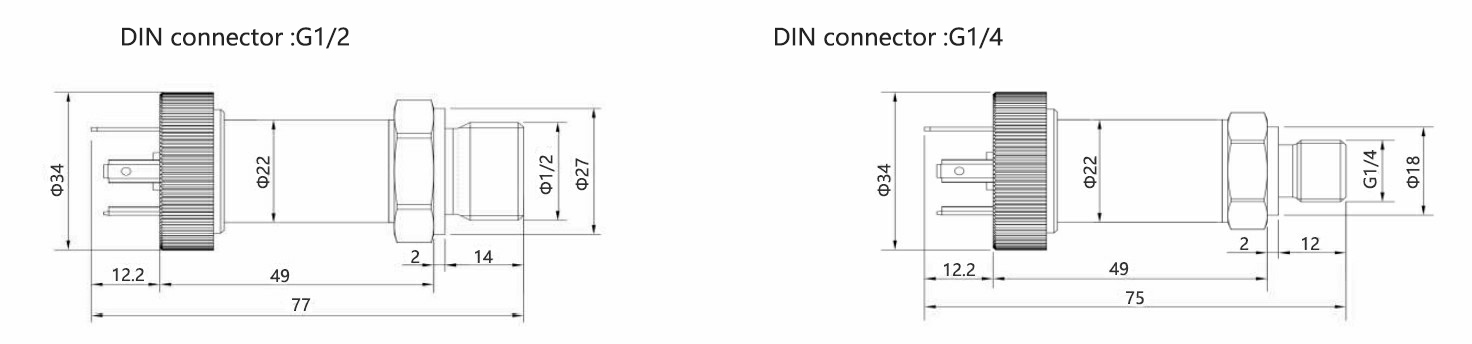

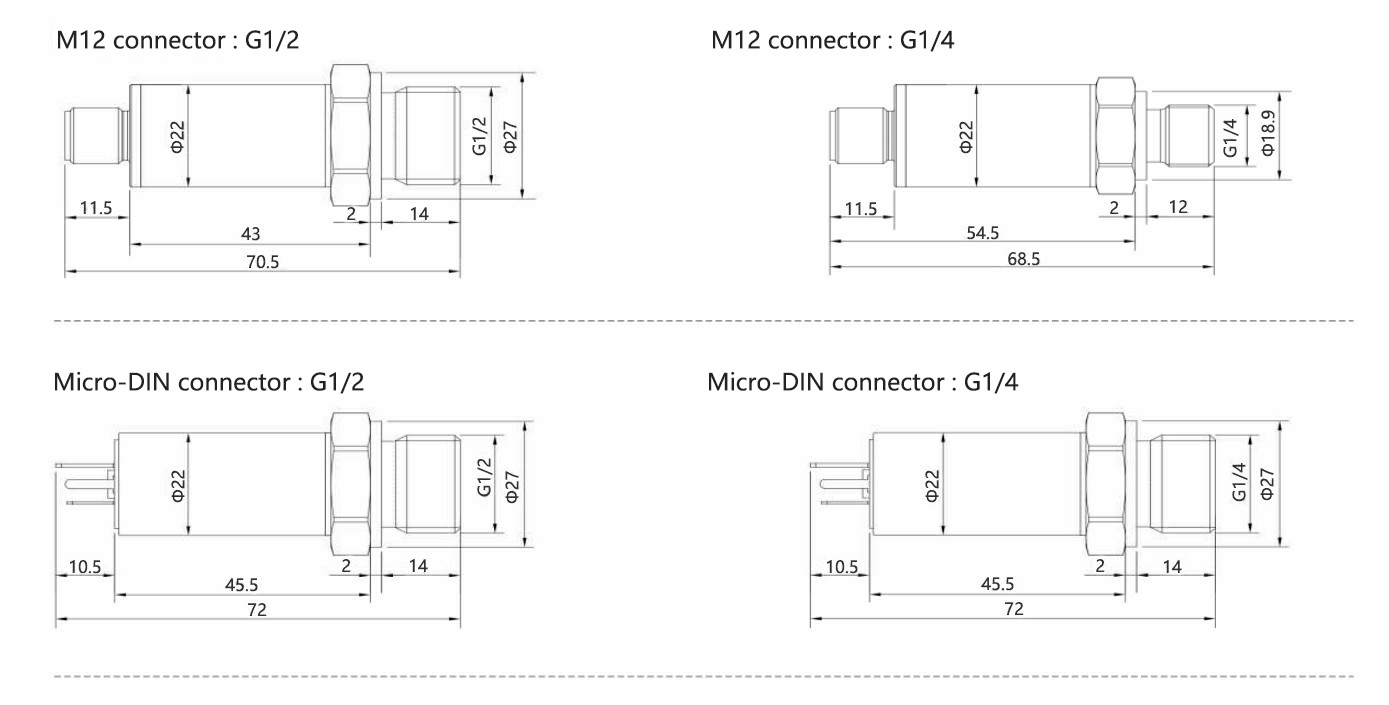

Overall dimensions

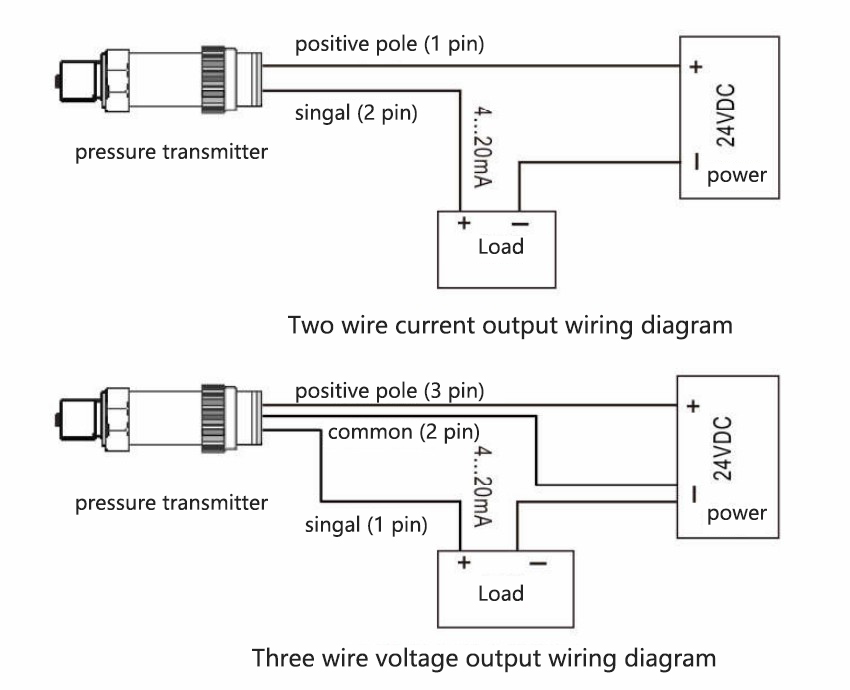

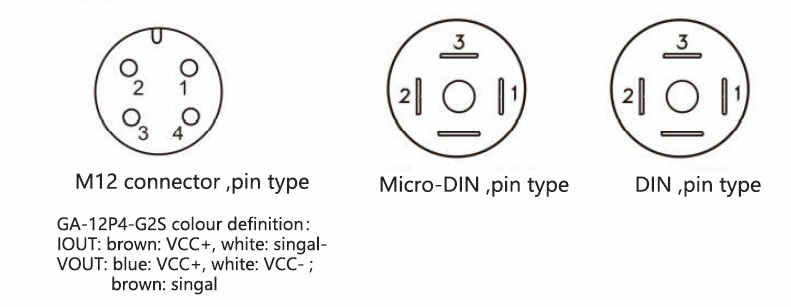

Wiring diagram
