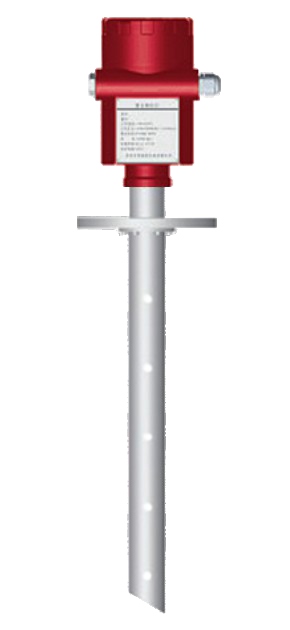

Components are not easy to block, break, damage, no regular maintenance
Non-adhesive material,three-terminal shielding technology is adopted
Universal power,24VDC or 220VAC available
Widely used,the process temperature-180℃...+200℃,the pressure goes from vacuum to 100bar
Indicator complete, red light alarm, green light normal, yellow light system failure
Convenient electrical connection, double electrical interface, wiring process is more safe and convenient
Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground
Surge suppression, built-in 1000V spark protection, surge suppression and antistatic 4KV/8KV
Corrosion resistant, probe made of PTFE corrosion resistant material
Components are not easy to block, break, damage, no regular maintenance
Non-adhesive material,three-terminal shielding technology is adopted
Universal power,24VDC or 220VAC available
idely used,the process temperature-40℃...+150℃,the pressure goes from vacuum to 100bar
Indicator complete, red light alarm, green light normal, yellow light system failure
Convenient electrical connection, double electrical interface, wiring process is more safe and convenient.
Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground
Surge suppression, built-in 1000V spark protection, surge suppression and antistatic 4KV/8KV

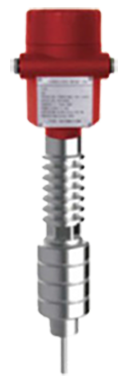

High temperature resistant,the process temperature-180℃...+500℃
Components are not easy to block, break, damage, no regular maintenance
Non-adhesive material,three-terminal shielding technology is adopted
Universal power,24VDC or 220VAC available
Indicator complete, red light alarm, green light normal, yellow light system failure
Convenient electrical connection, double electrical interface, wiring process is more safe and convenient
Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground
Surge suppression, built-in 1000V spark protection, surge suppression
Suitable for large scale measurement: power plant / cement factory, cement bunker
Suitable for powder or solid particles and other measurement media
Installation mode: Cable type RF admittance level switch is recommended to be installed vertically
Components are not easy to block, break, damage, no regular maintenance
Non-adhesive material,three-terminal shielding technology is adopted
Universal power,24VDC or 220VAC available
Indicator complete, red light alarm, green light normal, yellow light system failure
Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground
Surge suppression, built-in 1000V spark protection, surge suppression
Compact structure, hawsman plug out, suitable for small space occasions
Can be mounted top or side
Fork body can be standard and short and small
Not affected by flow, turbulence, bubble, foam, vibration and other product characteristics
Full electronic circuit design, no maintenance after operation
The process pressure can reach 2MPa
The process temperature can reach 150℃
Standard aluminum housing, simple wiring, wide application
Can be mounted top or side
Fork body can be standard, short small and long fork
Can measure liquid, long fork can measure powder
Not affected by flow, turbulence, bubble, foam, vibration and other product characteristics
Full electronic circuit design, no maintenance after operation
The process pressure can reach 2MPa
The process temperature can reach 150℃
Compact and can be mounted on top or side
Standard and reinforced (double rod construction) available
It can effectively prevent material hanging and clamping
Solid particles or dust level can be measured
The process pressure can reach 2MPa
The process temperature can reach 400℃
Compact and can be mounted on top or side
Resistance to high temperature, high pressure, corrosion, adhesion and impact
No moving parts in the detection process, no maintenance after operation
The process pressure can reach 6MPa
The process temperature can reach 600℃
Digital calibration, simple and reliable
The measurement range is optional
Adopt imported plastic seal reed pipe, long service life
Horizontal and vertical installation is optional
Plastic material, stainless steel material is optional
Float type is optional
Rich process connections
Special seal design, protection class up to IP67

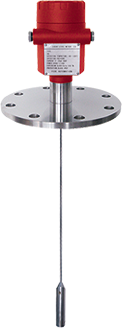

Cable probe
Accuracy ± 3mm, resolution 1mm
Measurement range 0...30m
It is suitable for measuring conventional liquid medium and solid powder
The process pressure can reach 2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature
Anti-corrosion rod probe, integrated design
It can simultaneously output the analog quantity signal of oil-water and oil-gas dual interface
The parameters can be set according to the user's requirements, and generally there is no need for calibration and commissioning on site
Measuring range 0... 20m
Accuracy ＜ 0.5%, resolution 1mm
Process pressure can reach 2.0MPa
Process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
Not affected by the change of medium density and temperature
Intelligent self-tuning signal processing technology, low failure rate, maintenance-free

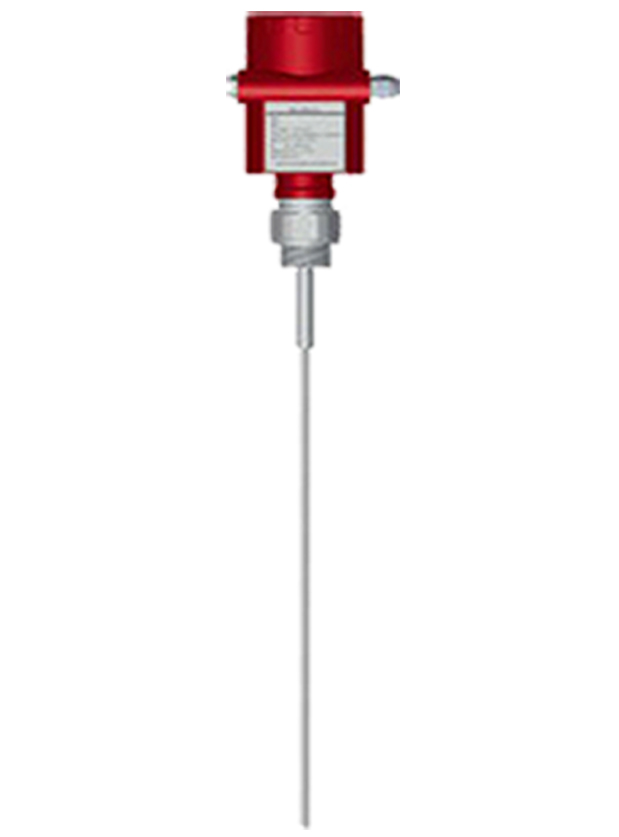

Rod probe
Accuracy ± 3mm, resolution 1mm
Measurement range 0...6m
It is suitable for measuring conventional liquid medium
The process pressure can reach 2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature

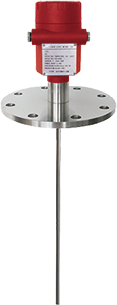

Double cable probe
Accuracy ± 3mm, resolution 1mm
Measurement range 0...30m
It is suitable for measuring liquid and solid powders with low dielectric constant
The process pressure can reach 2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature
High temperature and high pressure sensor, rod probe or coaxial tube probe
Accuracy ± 3mm, resolution 1mm
Measurement range 0...6m
Suitable for liquid level measurement with low dielectric constant
The process pressure can reach 40.0MPa
The process temperature can reach 400 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature
Rod type PTFE anti-corrosion probe
Accuracy ± 3mm, resolution 1mm
Measuring range bar 0...6m
Suitable for measurement of corrosive liquids
The process pressure can reach 2.0MPa
The process temperature can reach 180 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature
Coaxial tube probe
Accuracy ± 3mm, resolution 1mm
Measurement range 0...6m
It is suitable for measuring liquid media with low dielectric constant or surface fluctuation
The process pressure can reach 2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the change of medium density and temperature

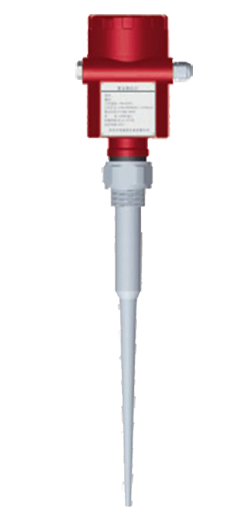

Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.8
Threaded and flanged connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process temperature can reach 120 ℃
The process pressure can reach - 0.1...0.3MPa
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

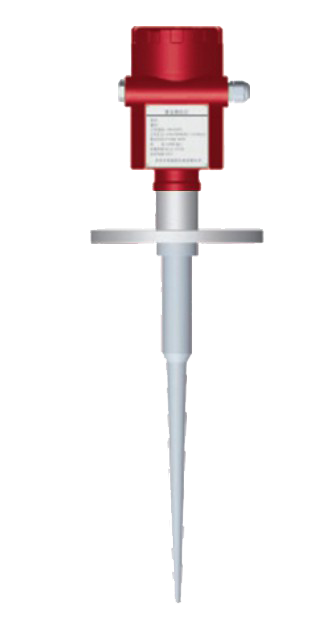

Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...1.6MPa
The process temperature can reach 150 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

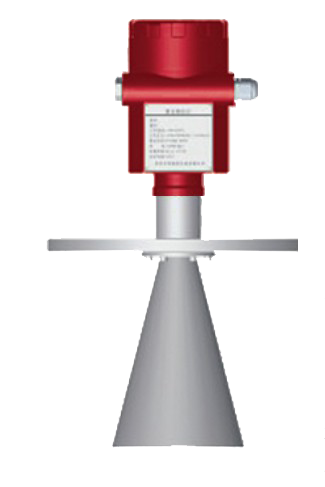

Horn antenna
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

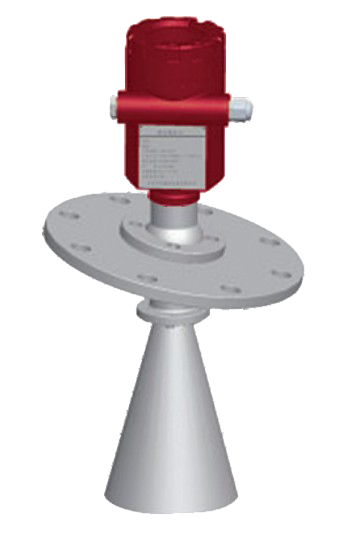

Horn antenna
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Universal flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 15mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure is atmospheric pressure
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature
Rod antenna
Measurement range 0...20m
It can measure all solid and liquid media with dielectric constant > 1.6
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 8mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure can reach - 0.1...2.0MPa
The process temperature can reach 250 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature

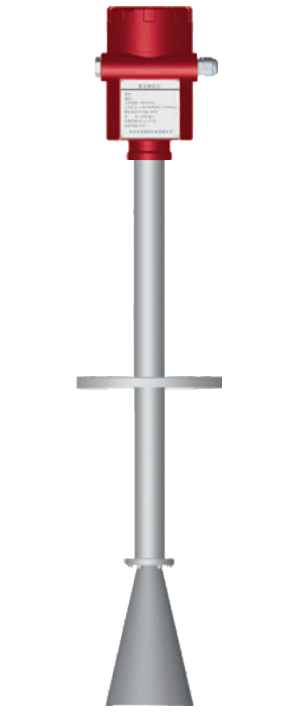

Horn antenna, extension tube connection
Measurement range 0...30m
It can measure all solid and liquid media with dielectric constant > 1.8
Flange connection
Non contact measurement, no wear, no pollution
Accuracy ± 15mm, resolution 1mm
Two wire loop power supply
4...20mA output or digital signal output
The process pressure is atmospheric pressure
The process temperature can reach 800 ℃
Not affected by noise, steam, dust, vacuum, etc
It is not affected by the changes of medium density, viscosity and temperature
Rod antenna
It is mainly used to measure liquid
Measurement range 0...20m
Thread and flange connection styles are optional
Non contact radar, no wear and pollution
The antenna is small in size and easy to install
The measurement blind area is small, and good results will be achieved for small tank measurement
Small beam angle and concentrated energy not only enhance the echo ability, but also help to avoid interferences
It is almost unaffected by the changes of water vapor, temperature and pressure in the atmosphere
High signal-to-noise ratio,Better performance can be obtained even in case of fluctuation
Horn antenna
Measurement range 0...30m
Thread and flange connection styles are optional
Suitable for liquid measurement with temperature resistance, pressure resistance and slight corrosion
Non contact radar, no wear and pollution
The antenna is small in size and easy to install
The measurement blind area is small, and good results will be achieved for small tank measurement
Small beam angle and concentrated energy not only enhance the echo ability, but also help to avoid interferences
It is almost unaffected by the changes of water vapor, temperature and pressure in the atmosphere
High signal-to-noise ratio,Better performance can be obtained even in case of fluctuation
Horn antenna
Measurement range 0...70m
It is mainly used to measure dust and other solids
Threaded and flanged connection
Non contact radar, no wear and pollution
The antenna is small in size and easy to install
The measurement blind area is small, and good results will be achieved for small tank measurement
Small beam angle and concentrated energy not only enhance the echo ability, but also help to avoid interferences
It is almost unaffected by the changes of water vapor, temperature and pressure in the atmosphere
High signal-to-noise ratio,Better performance can be obtained even in case of fluctuation
