TS1

TS1

TS1 armored direct-out temperature sensor is mainly used in pipeline, machinery manufacturing,machine tool,petrochemical, electric power and other industries.And scenarios that require small spaces for installation.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Armored type, temperature measuring element straight out type

Temperature measuring components PT100/PT1000/ thermocouple K type, J type and other options

Good flexibility, easy to install in narrow space

Vibration resistance, fire resistance, high pressure resistance

High precision, good stability and fast response

Basic parameters
Temperature measuring elementPt100，Pt1000，thermocouple K type，J type etc
Temperature measurement rangePt100：﹣200…600℃，other customizable
Accuracy classClass A，class B，class 1，class 2，class1/3B
Electrical parameters
Electrical connectionArmored wire end exposed, standard plug,
micro plug, Lemo connector
Mechanical parameters
Process connectionDrilling installation or other contact type
Protective tube materialStainless steel，Inconel，other customizable
Protective tube diameter0.5mm，1.0mm，1.5mm，2mm，3mm，4.5mm，
5mm，6mm，8mm
Length of protective tube50…100mm；customizable
Environmental conditions
Protection tube withstand pressure100bar（max)

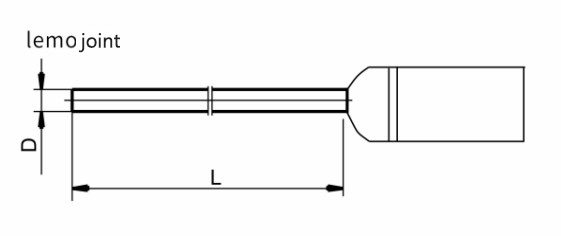

Overall dimensions
