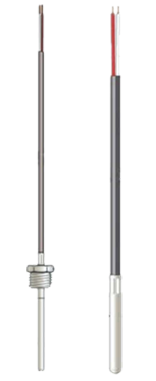

TS2

TS2 cable type temperature sensor is mainly used to measure the temperature of liquid and gas, as well as some special components. Mainly used in HVAC, general heating devices, refrigeration units, ovens, furnaces, factory manufacturing and other fields.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Simple structure, compact, easy to install

Widely used

Low cost, good measurement accuracy

Reliable positive pressure and negative pressure sealing

Temperature measuring components PT100/PT1000/ thermocouple K type, J type and other options

Two wire, three wire and four wire connections are available

Basic parameters

Temperature measuring elementPt100，Pt1000，thermocouple K type，J type etc

Temperature measurement rangePt100：﹣50…350℃，other customizable

Accuracy classClass A，class B，class 1，class 2，class1/3B

Electrical parameters

Outgoing lineTwo wire，three wire，four wire

Mechanical parameters

InstallationThreaded mounting, insert type, reduced
diameter protection tube

Process connectionA variety of thread specifications or sleeve etc

Protective tube materialStainless steel, copper, others can be customized

Protective tube diameter6.0mm（thick 1.0mm）；8.0mm（thick 1.5mm）

Length of protective tube6.0mm：50…500mm
8.0mm：50…1000mm

Wire length1000mm，Length can be specified

Wire protectionFolding protection, spring
Anti-folding protection, plastic software
Folding protection, metal hose
Waterproof jacket

Environmental conditions

Protection tube withstand pressure100bar（max)

Wire typePVC，temperature resistance﹣5…+80℃
（105℃）
Si gel，temperature resistance﹣50…+180℃
PTFE，temperature resistance﹣190…+260℃
Metal mesh and custom，temperature
resistance﹣50…+350℃

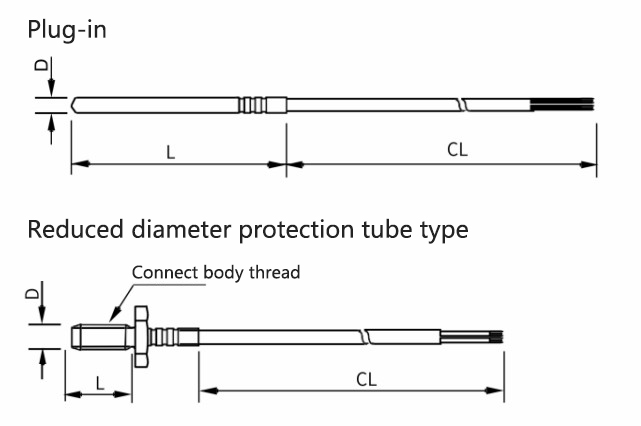

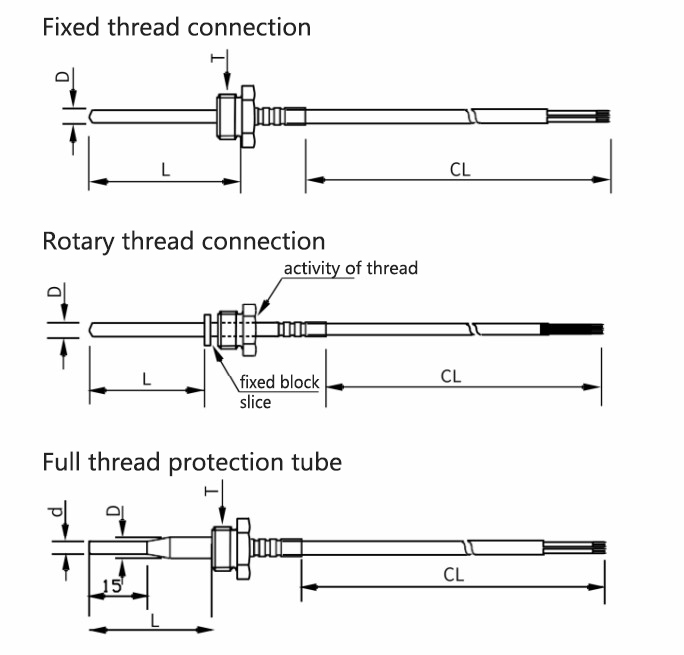

Overall dimensions
