TS3

TS3 wiring box temperature sensor, mainly used for measuring liquid and gas, with reliable sealing. Mainly used in HVAC,refrigeration units, furnaces and other industrial furnaces, hydraulic systems, industrial cooling systems and various medical sterilization equipment.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Simple wiring, easy to install

Various temperature measuring elements are available

An optional core

Optional integrated temperature transmitter

High precision, good stability and fast response

Basic parameters

Temperature measuring elementPt100，Pt1000，Ni1000，KTY，NTC，
thermocouple E、T
、N、L、K

Temperature measurement rangePt100：﹣50…350℃，other customizable

Accuracy classClass A，class B，class 1，class 2，class1/3B

Junction boxB1 type 、B2 type、B3 type etc

Electrical parameters

Outgoing lineTwo wire，three wire，four wire

OutputThermocouple / thermal resistance /
4…20mA / 0…10V / relay output

Mechanical parameters

InstallationThreaded mounting, threaded with support
pipe, insert type, flange

Protect tube sheath materialStainless steel, ceramic, titanium, Incone
nickel alloy, Hastelloy, polyethylene, etc

Environmental conditions

Protection classIP65 / IP67

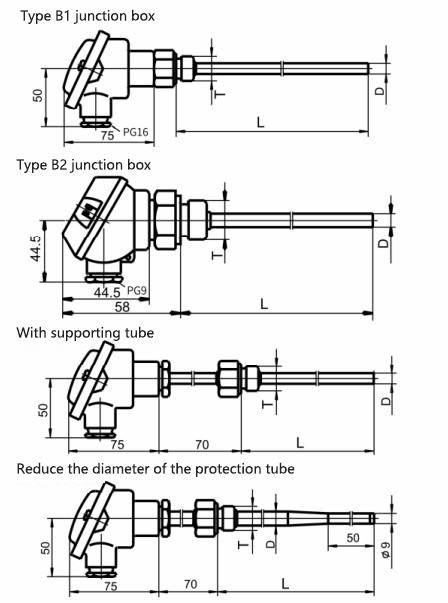

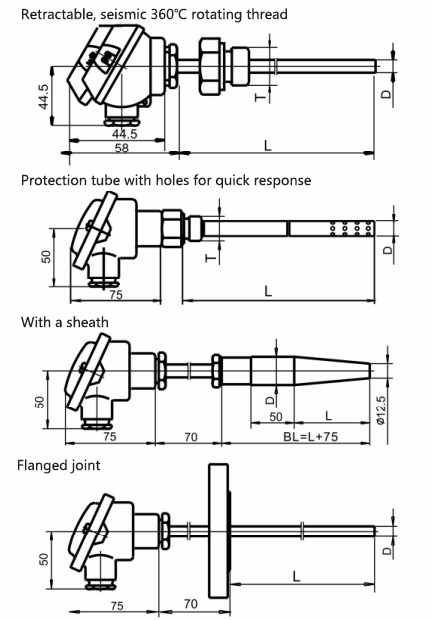

Overall dimensions
