TS3R

TS3R rubber machinery special temperature sensor, mainly used to measure the temperature of liquid and gas, mainly used in the rubber industry, such as mixer, vulcanizing machine and other equipment, as well as the steam circuit and other need to measure the temperature of the scene.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Temperature range -50...600 ℃

An optional core

Optional all-in-one temperature transmitter (0...300 ℃)

Single and double plug packages are available

High precision, good stability and fast response

Basic parameters

Temperature measuring elementPt100，Pt1000

Temperature measurement rangePt100：﹣50…600℃，other customizable

Accuracy classClass A，classB

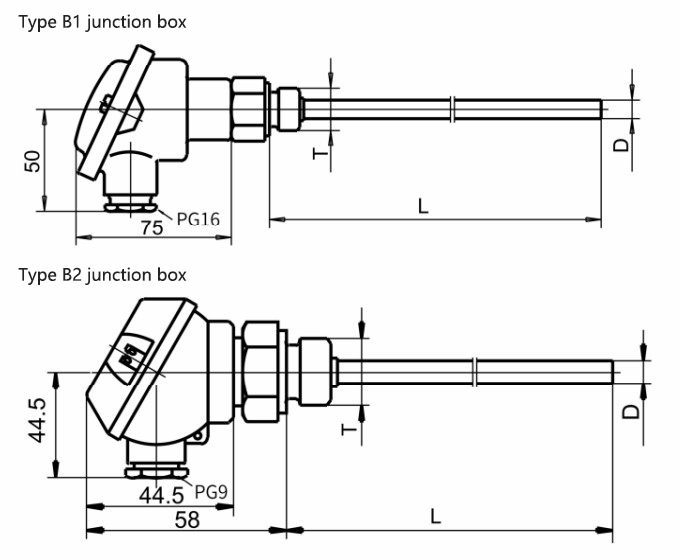

Junction boxB1 type、B2 type etc

Electrical parameters

Outgoing lineTwo wire，three wire，four wire

OutputPt100 / Pt1000 / 4…20mA / 0…10V / relay output

Mechanical parameters

InstallationScrew installation，thread

Protective tube materialStainless steel，Stainless steel 316L

Environmental conditions

Protection classIP65 / IP67

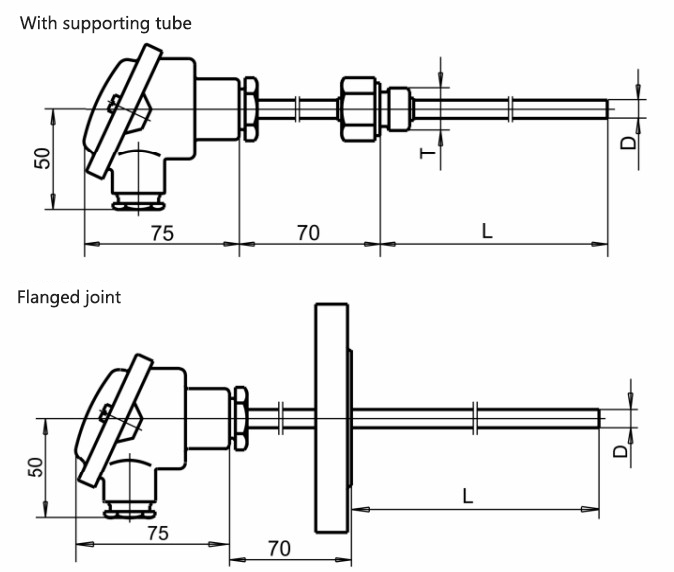

Overall dimensions
