TA1-C2001.X

TA1-C2001.X two wire circular temperature transmitter, used for Pt100 or Ni100 sensor temperature measurement, or conversion linear resistance resistance value changes for standard analog current signals.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2 wire system, power supply and signal sharing

Input RTD or LIN.r signal

Output 4...20mA

High measurement accuracy

Dimensions are standard DIN B general specification

With sensor fault status detection function

Basic parameters

Input range﹣200…850℃（the user to specify）

AccuracyGreater than 0.1% of the set range

SNRMinimum 60dB

Signal dynamic range input19bit

Signal dynamic range output16bit

Response time1s（customizable 0.3…10s)

Electrical parameters

Power supply8…35VDC

Power25mW…0.8W

Voltage drop8.0VDC

RTD input typePt100，Ni100

Cable resistance10Ω（Max）

Sensor current＞0.2mA，＜0.4mA

Influence of sensor cable resistance on
accuracy (3-line)＜0.002Ω/Ω

Sensor fault detectionHave

Minimum linear resistance...the biggest0…10000Ω

Current output4…20mA

Minimum signal range16mA

Load（@cureent output）（Vsupply-8）/ 0.023Ω

Load stability0.01% F.S / 100Ω

Sensor fault alarm output3.5…23mA

Upper/lower current in accordance with
NAMUR NE43 standard23mA/3.5mA

Turnover time135ms

Mechanical parameters

Structure sizeΦ44×20.2mm

Weight（about）50g

Wire specifications1×1.5mm（2 the winding）

Screw terminal moment0.4Nm

Vibration-proof specificationIEC 60068-2-6

Environmental conditions

Operating temperature﹣40…+85℃

Calibration temperature20…28℃

Relative humidity＜95%RH（No condensation）

Protection class (housing/terminal)IP68 / IP00

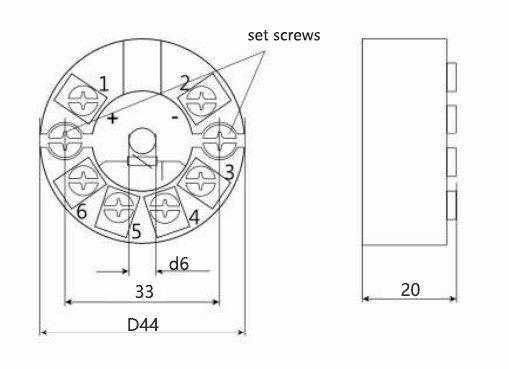

Overall dimensions

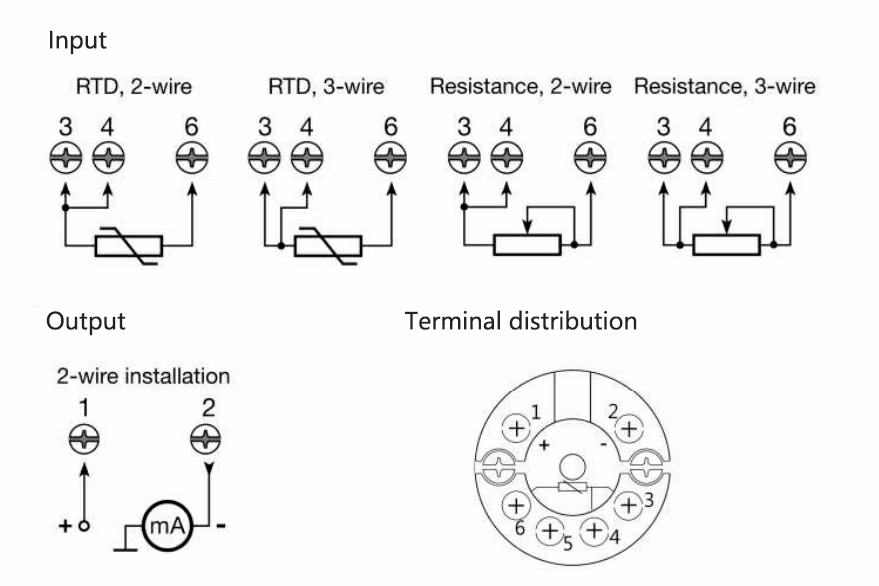

Wiring diagram
