FD10.20

FD10.20

FD10.20 general purpose corrosion resistant pointswitch,limit control for storage and transportation of corrosive liquids,suitable for level measurement of corrosive powder, liquid, etc.
Type of sample: FD10.20-500.0100.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Corrosion resistant, probe made of PTFE corrosion resistant material

Components are not easy to block, break, damage, no regular maintenance

Non-adhesive material,three-terminal shielding technology is adopted

Universal power,24VDC or 220VAC available

idely used,the process temperature-40℃...+150℃,the pressure goes from vacuum to 100bar

Indicator complete, red light alarm, green light normal, yellow light system failure

Convenient electrical connection, double electrical interface, wiring process is more safe and convenient.

Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground

Surge suppression, built-in 1000V spark protection, surge suppression and antistatic 4KV/8KV

Basic parameters
Resolution ratio0.2pF or smaller
Repetitive＜1mm (Conductive material)；
＜20mm (Insulation material)
Alarm wayHigh alarm or low alarm
Alarm light outputRed light：alarm；Green light：normal；
Yellow light：fault alarm
Response time＜0.5s
Delay time0…99s (adjustable）
Safety barrierBuilt-in current limiting, quadruple voltage
limiting protection safety grating
Electrostatic spark protectionSurge resistance 1000V
Video protection＜10V/m
Electrical parameters
The power supply 24VDC / 220VAC optional
OutputRelay（2set of no+2set of nc）
Contact capacity24VDC / 8A；220VAC / 5A
Load resistance500Ω between the center end and the shield
end, 150Ω between the shielding end and ground
Mechanical parameters
The length of the probe0.5m（standard）；0.3…20m（optional）
The probe materialStainless steel / PTFE / EFP
The connection methodThread NPT¾、the flange
InstallationTop、side
Process connectionBSPT thread（standard），optional NPT or the
flange
Electrical interfaceDouble M20×1.5（NPT1/2'' optional）
Environmental conditions
Process temperature﹣40...+150℃
Environment temperature﹣40...+70℃
Environment humdity＜98%RH（at 25℃）
Enclosure protectionIP67
Explosion-proof gradeExd II CT6

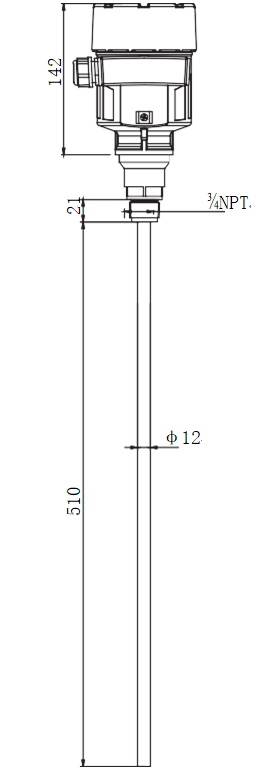

Overall dimensions



Wiring diagram

                       24VDC:

                      220VAC:



          ①  1、2the power supply           ②  3、6 nc contacts           ③  4、7common end          ④  5、8 no contacts
