FD10.30

FD10.30

FD10.30 universal high temperature resistant point switch for limit control of material storage and transportation,suitable for particle, powder, liquid and other high temperature material level measurement occasions.
Type of sample: FD10.30-500.0100.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

High temperature resistant,the process temperature-180℃...+500℃

Components are not easy to block, break, damage, no regular maintenance

Non-adhesive material,three-terminal shielding technology is adopted

Universal power,24VDC or 220VAC available

Indicator complete, red light alarm, green light normal, yellow light system failure

Convenient electrical connection, double electrical interface, wiring process is more safe and convenient

Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground

Surge suppression, built-in 1000V spark protection, surge suppression

Basic parameters
Resolution ratio0.2pF or smaller
Repetitive＜1mm (Conductive material)；
＜20mm (Insulation material)
Alarm wayHigh alarm or low alarm
Alarm light outputRed light：alarm；Green light：normal；
Yellow light：fault alarm
Response time＜0.5s
Delay time0…99s (adjustable）
Safety barrierBuilt-in current limiting, quadruple voltage
limiting protection safety grating
Electrostatic spark protectionSurge resistance 1000V
Video protection＜10V/m
Electrical parameters
The power supply 24VDC / 220VAC optional
OutputRelay（2set of no+2set of nc）
Contact capacity24VDC / 8A；220VAC / 5A
Load resistance500Ω between the center end and the shield
end, 150Ω between the shielding end and ground
Mechanical parameters
The length of the probe0.5m（standard）；0.3…20m（optional）
The probe materialStainless steel / Ceramic
The connection methodThread G1½、the flange
InstallationTop、side
Process connectionBSPT thread（standard），optional NPT or the
flange
Electrical interfaceDouble M20×1.5（NPT1/2'' optional）
Environmental conditions
Process temperature﹣180...+500℃
Environment temperature﹣40...+70℃
Environment humdity＜98%RH（at 25℃）
Enclosure protectionIP67
Explosion-proof gradeExd II CT6

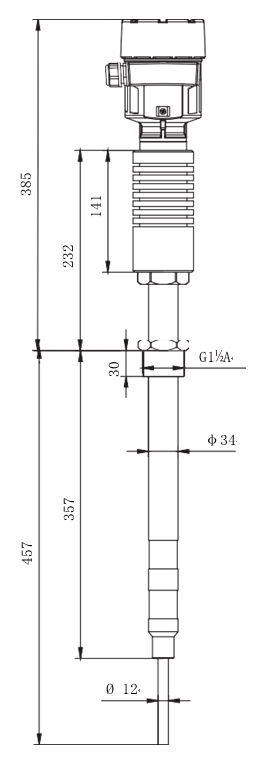

Overall dimensions



Wiring diagram

                       24VDC:

                      220VAC:



          ①  1、2the power supply           ②  3、6 nc contacts           ③  4、7common end          ④  5、8 no contacts
