FD10.40

FD10.40

FD10.40 rope point switch for large tanks, silos, powder or solid particles, etcobject level measurement occasions.
Type of sample: FD10.40-2000.0100.*

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Suitable for large scale measurement: power plant / cement factory, cement bunker

Suitable for powder or solid particles and other measurement media

Installation mode: Cable type RF admittance level switch is recommended to be installed vertically

Components are not easy to block, break, damage, no regular maintenance

Non-adhesive material,three-terminal shielding technology is adopted

Universal power,24VDC or 220VAC available

Indicator complete, red light alarm, green light normal, yellow light system failure

Drive ability is strong, 500 Ω between center end and shield end, 150 Ω between shield end and ground

Surge suppression, built-in 1000V spark protection, surge suppression

Basic parameters
Resolution ratio0.2pF or smaller
Repetitive＜1mm (Conductive material)；
＜20mm (Insulation material)
Alarm wayHigh alarm or low alarm
Alarm light outputRed light：alarm；Green light：normal；
Yellow light：fault alarm
Response time＜0.5s
Delay time0…30s (adjustable）
Safety barrierBuilt-in current limiting, quadruple voltage
limiting protection safety grating
Electrostatic spark protectionSurge resistance 1000V
Video protection＜10V/m
Electrical parameters
The power supply 24VDC / 220VAC optional
OutputRelay（2set of no+2set of nc）
Contact capacity24VDC / 8A；220VAC / 5A
Load resistance500Ω between the center end and the shield
end, 150Ω between the shielding end and ground
Mechanical parameters
The length of the probe0.6…6m（optional）
The probe materialStainless steel / PTFE
The connection methodThread G1½、the flange
InstallationTop、side
Process connectionThread or the flange
Electrical interfaceDouble M20×1.5（1/2''NPT optional）
Environmental conditions
Process temperature﹣180...+250℃
Environment temperature﹣40...+70℃
Environment humdity＜98%RH（at 25℃）
Enclosure protectionIP66
Explosion-proof gradeExd II CT6

Overall dimensions

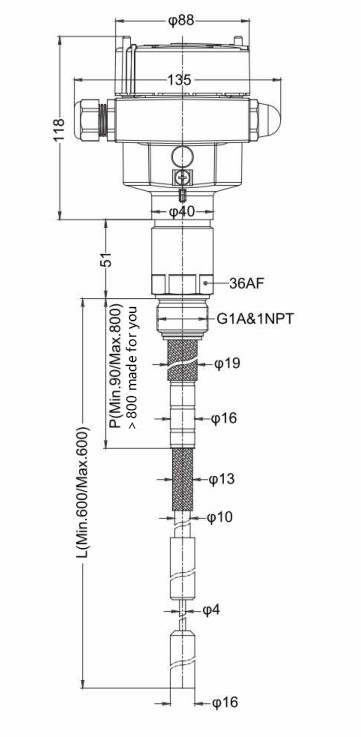

射频导纳FD10.40 尺寸图_英.jpg


Wiring diagram

                       24VDC:

                      220VAC:



          ①  1、2the power supply           ②  3、6 nc contacts           ③  4、7common end          ④  5、8 no contacts
