FD50.10 series magnetostrictive liquid level gauge is widely used in the monitoring, alarm and control of liquid level, temperature, density, interface and other physical parameters in the fields of industrial process control, petroleum processing, pharmaceutical, food processing, water treatment, underground inventory of gas stations and so on.
Type of sample: FD50.10-1114.2500.321. S110.*
Measurement range 0...15m
Modular design, sensors and electronic units can be exchanged to facilitate spare parts and maintenance
Accuracy ± 1mm or ± 0.05% F.S
The process pressure can reach 10MPa
The process temperature can reach 350 ℃
Support two-wire system 4...20mA HART Communication
With field key calibration, easy and fast to use
There is no need for regular correction and maintenance

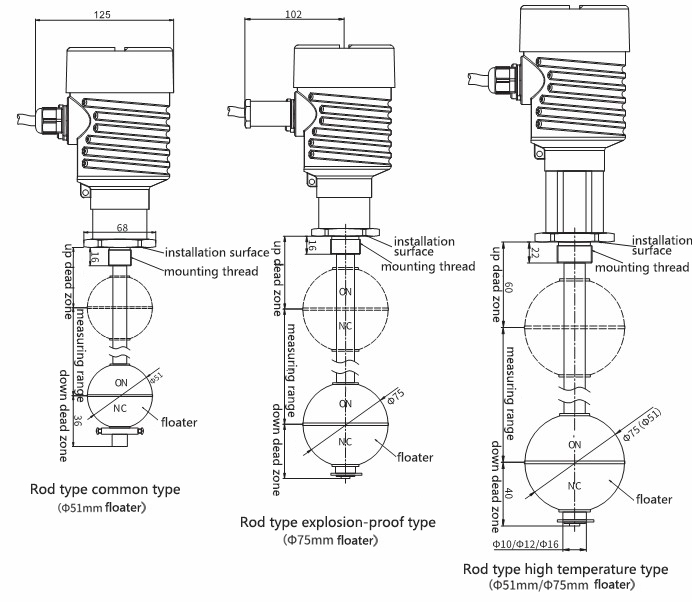

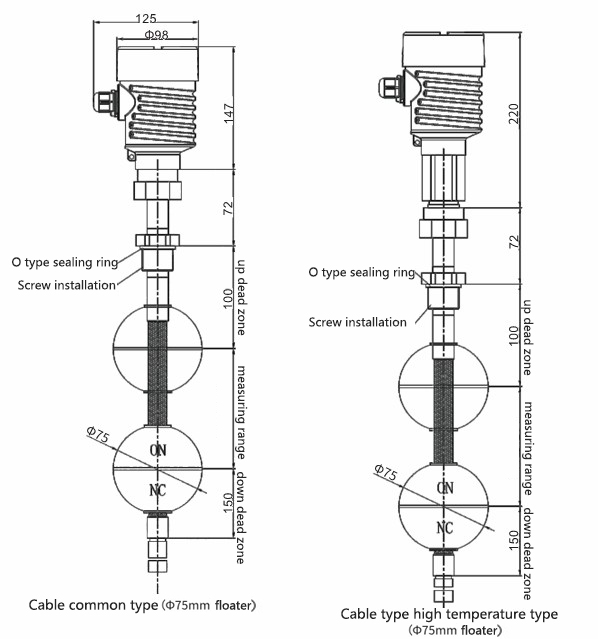

Overall dimensions

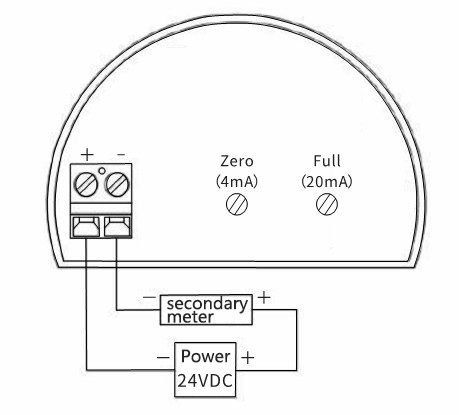

Wiring diagram
