FD50.20 series acid and alkali resistant floating ball level gauge can be widely used in chemical industry, oil refining, storage and transportation, water treatment and other industries.
Type of sample: fd50 20-1114.1500.1010.*
The anti-corrosion process of guide rod and floating ball is suitable for the measurement of acid-base strongly corrosive liquid
Imported plastic sealed reed pipe with long service life
Highlight the led to display the meter, which can be configured into horizontal and vertical structure design
Convenient for viewing in various applications
Flameproof and intrinsically safe explosion proof certification optional
Unique sealing design, the protection grade of the whole machine can reach IP66 / IP67
Standard aluminum housing, simple wiring, widely used

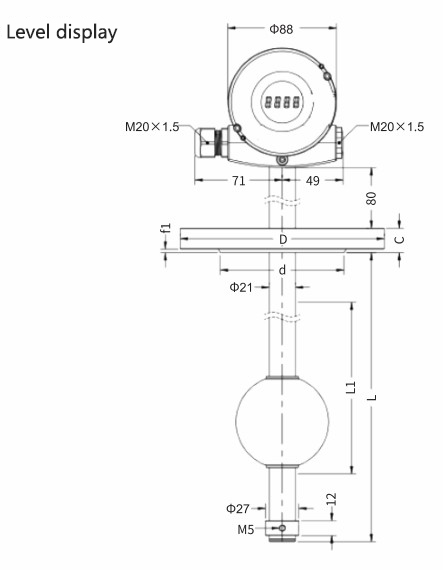

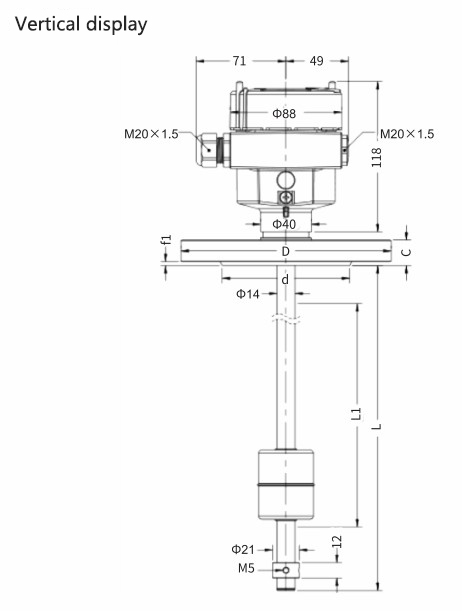

Overall dimensions
Wiring diagram
