FD50.30 series magnetic flap level gauge is suitable for most working conditions with slight corrosion or strong corrosion
measurement of corrosive liquids. Such as the liquid level of petrochemical raw material storage tank, ion-exchange membrane electrolysis waste water tank, etc.
Type of sample: FD50.30-S2500.710410*
Pontoon material 304, 316L, PTFE, FEP, PP and other options
The display panel is widened, the scale is thickened, and the long-distance display is clear
Accuracy ± 5mm
The process pressure can reach 10MPa
The process temperature can reach 350 ℃
Support two-wire system 4...20mA HART communication
The joint between the buoy with lining and the flange adopts a unique lining process, which is effective
Prevent accidental corrosion damage caused by medium leakage caused by extrusion damage
PP products are light in anti-corrosion and weigh only 1 / 5 of stainless steel, convenient installation

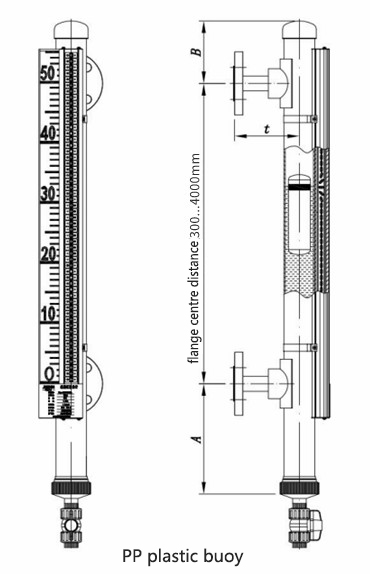

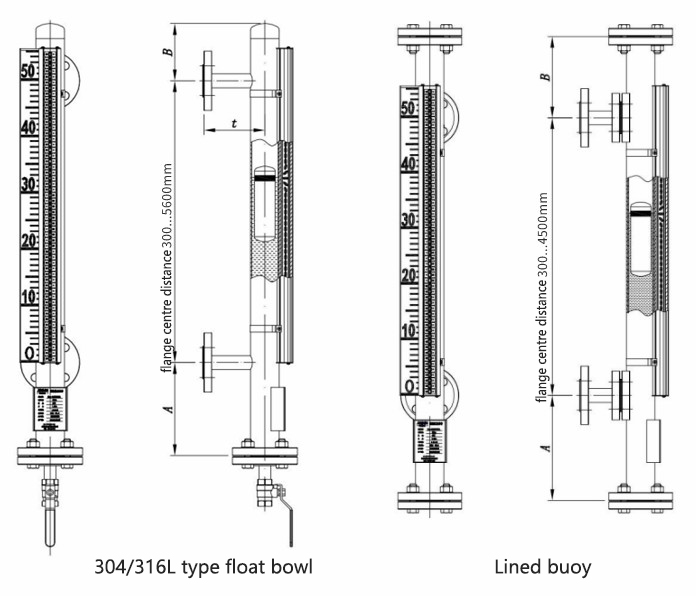

Overall dimensions
Wiring diagram
