Detection distance (center position)150mm（test standard object: white ceramic）
Detection range (central location)200mm（±100mm）
LightRed semiconductor laser wavelength 655nm
maximum power output 1mW
Laser classCLASS2（IEC / JIS）；CLASS Ⅱ（FDA）
Spot diameter500×550μm【Defined by 1/e² (13.5%) of the
central beam intensity】
Linear precision±0.5%F.S.
Resolution ratio60μm（test results when the average sampling
times is 512）
Sampling period500μs / 1000μs / 2000μs / 4000μs / AUTO
Temperature drift characteristic (reference value)±0.08%F.S. / ℃
Indicator lightLaser working indicator (green)/reset setting
indicator (red) Switch output indicator
(orange)/mode indicator (red)

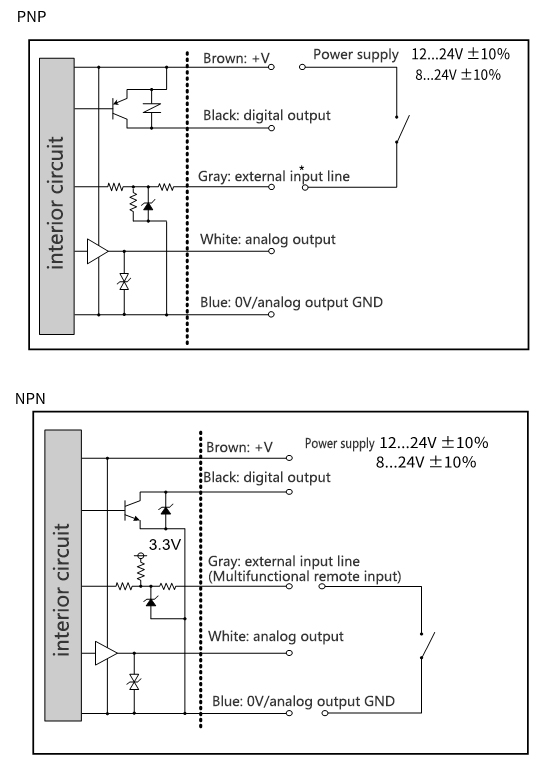

External input (multi-function input)Laser shutdown, remote teaching, sampling
hold, single pulse trigger, return to zero, etc
