PQ10

PQ10 mirror reflection type photoelectric switch, can be used in packaging, logistics, machinery manufacturing and other fields.
Type of sample：PQ10.21P24P.*

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The detection distance is long, up to 30m

Dc power input (10...30VDC)

Use visible red LED

Specific reflector, detection distance up to 50m

2 digital switching output

With signal output indicator light

Basic parameters

Detection range0…30m，with reflector

Reflector300×300mm

light sourceRed LED

LED light wavelength 630nm

Transmitted signal waveformPulse

LED groupFreedom group（according to EN62471)

Switching frequency500Hz

Response time1ms

Delay300ms

LED numberTwo beams of light

Electrical parameters

Power supply10…30V DC

Residual waviness0…15%；from UB

Open current20mA（max)

Digital switching quantity output number2 way

Switch output voltage typeDC

Maximum switching current100mA

Switching voltageLow：≤2V；High：≥（UB-2V)

Switch output 1Transistor, PNP, Light on, connection 1, pin 4
configuration

Switch output 2Transistor, PNP, Dark on, connection 1, pin 2
configuration

Mechanical parameters

Shell materialPlastic，PC-PBT

Lens cover materialPlastic（PMMA）

Connection type4 pin connector

Shell colourRed

Size20.5mm×76.3mm×44mm（W×H×L）

WeightAbout 60g

Environmental conditions

Operating temperature﹣40…+60℃

Storage temperature﹣40…+70℃

Protection classIP67

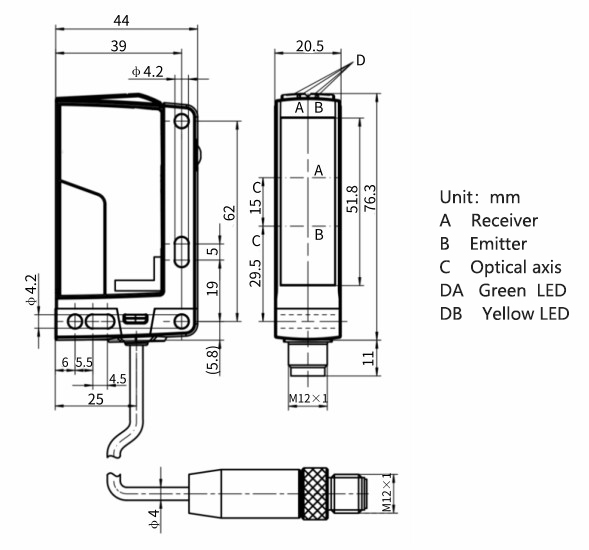

Overall dimensions

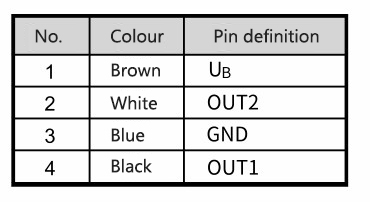

Wiring diagram


Brochures

Manuals

CAD/CAE

Certificate

Reflector

PQC7.AR1

Standard reflector

PMMA material

Using reflector, the detection distance is up to 30m

Mounting bracket

PQA6.AL25

Suitable for PQ10 photoelectric switch
