FD-RS20 is an economic special car collision warning radar sensor.
Type of example：FD-RS20-A20.*
Large angle: the beam detection range is wide, and the detection angle can reach 120° for 10m pedestrians
Blind area is small: the blind area is only 0.2m
High precision: accuracy up to ±0.1m
The detection distance is up to 20m
High protection: applicable to rain, snow, fog, haze, sand and other kinds of bad weather, maximum eliminate missing report, eliminate hidden dangers
Anti-interference: taylor algorithm is used to remove the influence of ground clutter and targets outside the main beam
Easy setting of collision avoidance distance: output 1 and output 2 can be quickly set through the DIP switch of the sensor itself
Output signal: 2-channel switching quantity
Collision avoidance detection between devices during movement

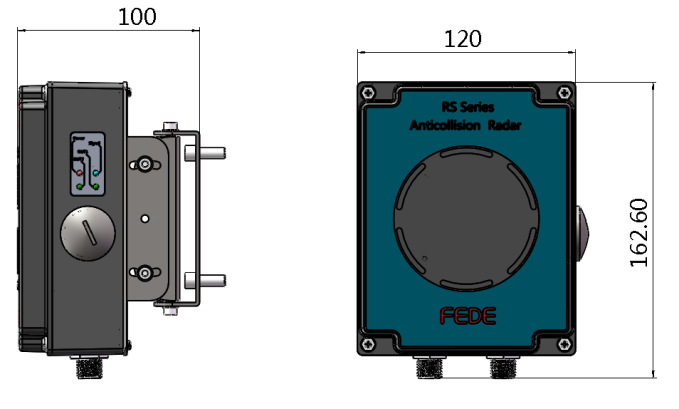

Overall dimensions
Wiring diagram
