TA1-D2011.X

TA1-D2011.X two wire square temperature transmitter, used for TEMPERATURE measurement of Pt100 sensor, or conversion linear resistance resistance value changes for standard analog current signals.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

2 wire system, power supply and signal sharing

Input Pt100 (2 wire, 3 wire or 4 wire)

Output 4...20mA

High measuring accuracy, less than 0.1% set range

Ultra-thin shell design, thickness of only 6mm

Set parameters by DIP switch

Excellent EMC electromagnetic compatibility and noise suppression

Basic parameters

Input range﹣200…850℃（the user to specify）

AccuracyGreater than 0.1% of the set range

SNRMinimum 60dB

Signal dynamic range input23bit

Signal dynamic range output18bit

Response time＜30ms/300ms（optional)

Electrical parameters

Power supply3.3…35VDC

Power12mW…0.8W

Voltage drop3.3VDC

RTD input typePt100

Sensor cable resistance＜50Ω each line

Sensor current＜150μA

Influence of sensor cable resistance on
accuracy (3-line)＜0.002Ω/Ω

Sensor fault detectionHave, use the DIP switch

Sensor disconnect detection＞800Ω

Sensor short circuit detection＜18Ω

Current output4…20mA或20…4mA

Minimum signal range16mA

Load（@current output）（Vsupply-8）/ 0.023Ω

Load stability0.01% F.S / 100Ω

Sensor fault alarm output3.5…23mA

Upper/lower current in accordance with
NAMUR NE43 standard23mA/3.5mA

Turnover time10ms

Mechanical parameters

Structure size113×6.1×115mm（H×W×L）

Weight（about）70g

DIN typeDIN EN 60715/35mm

Wire specifications0.13×2.5mm²/AWG（26…12 the winding）

Screw terminal moment0.5Nm

Vibration-proof specificationIEC 60068-2-6

2…25Hz±1.6mm

25…100Hz±4g

Environmental conditions

Operating temperature﹣25…+70℃

Storage temperature﹣40…+85℃

Calibration temperature20…28℃

Relative humidity＜95%RH（No condensation）

Protection class (housing/terminal)IP20

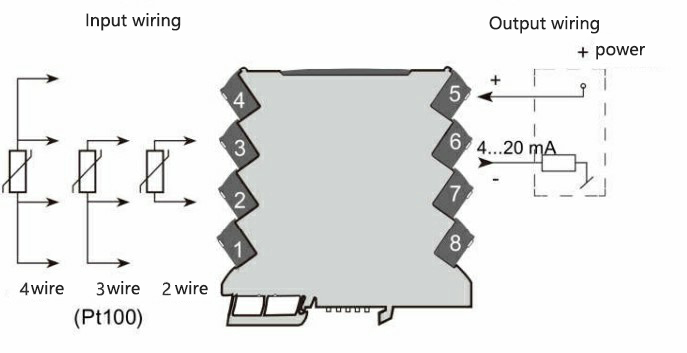

Wiring diagram
