FD-CM8 series light screen is used in machining equipment, dangerous work area, to prevent machinery equipment injury to operators and personal injury and equipment injury caused by entering dangerous areas harm, protect the personal and equipment safety.
The detection distance is up to 20m
Complete specifications and models, easy installation, simple wiring
Perfect self-check function
Optical axis spacing can be 20mm, 40mm, 80mm, 160mm, 320mm
Strong resistance to electromagnetic and light interference; Strong vibration resistance, excellent waterproof and dustproof performance
It has functions of working status, wiring, fault indication and auxiliary lighting
Dual PNP/NPN output with security monitoring
With EDM, auxiliary output function
Multi-function version of the other: external testing, manual reset function; Fixed shielding function
Floating shielding with two floating zones; Can be configured using a handheld programmer

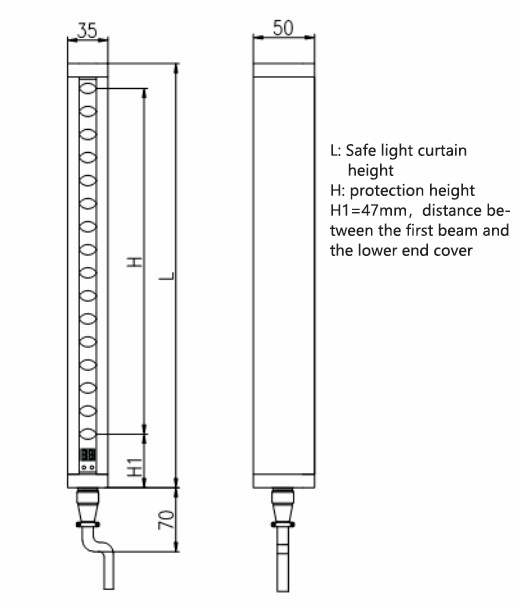

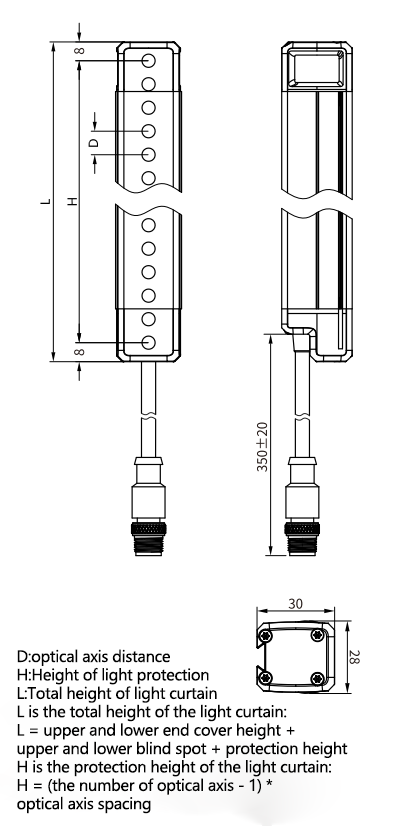

Overall dimensions

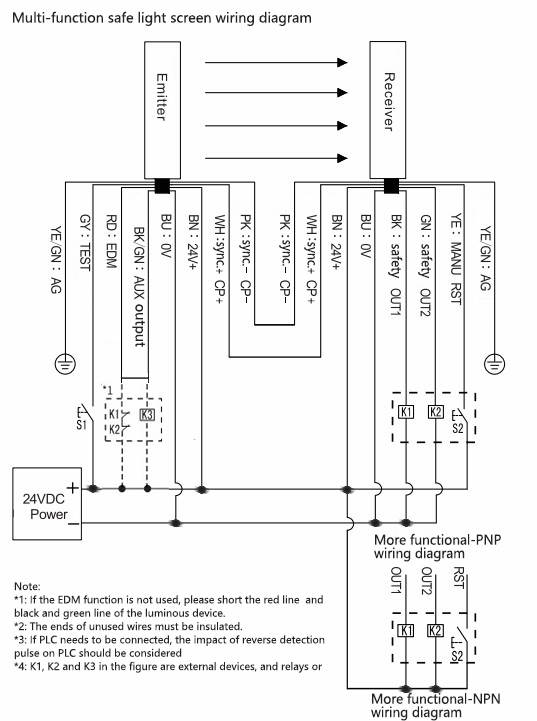

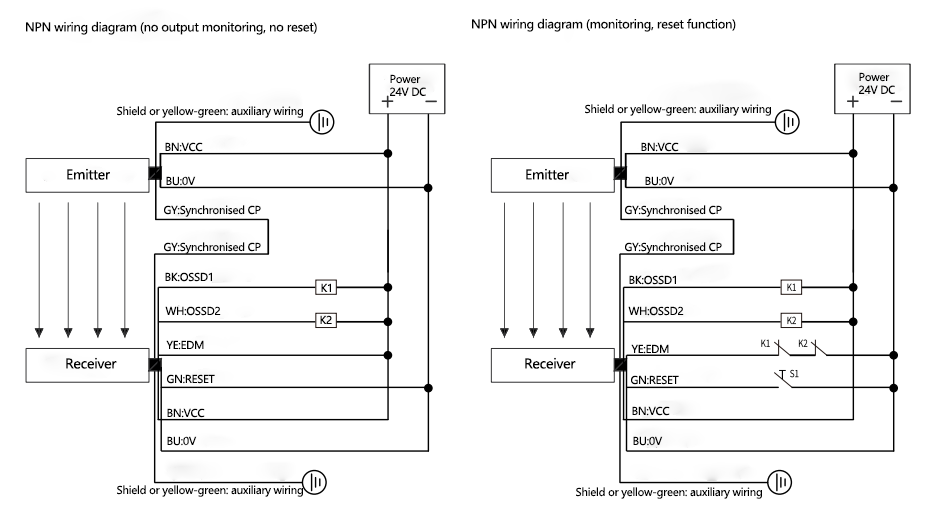

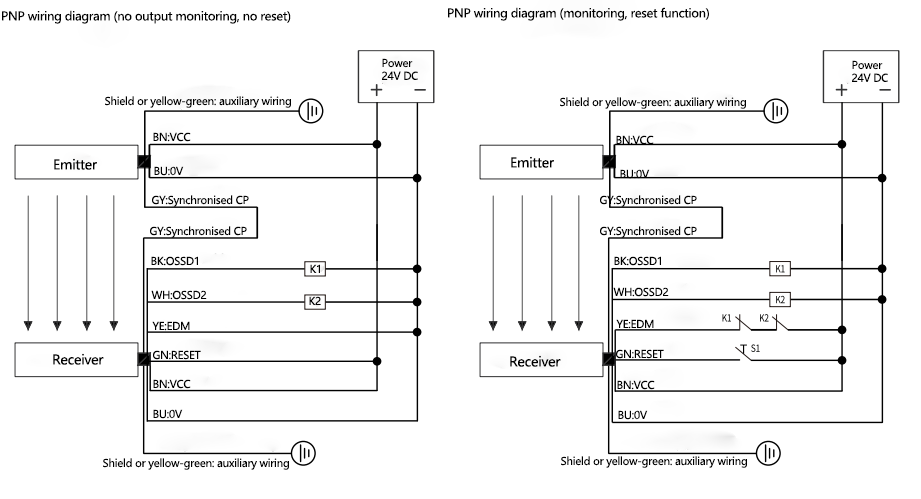

Wiring diagram
Note: Refer to the instruction manual for wiring diagrams of other output types
