FD-CM9 series light screen is used in machining equipment, dangerous work area, to prevent machinery equipment injury to operators and personal injury and equipment injury caused by entering dangerous areas harm, protect the personal and equipment safety.
The detection distance can reach 30m
Perfect self-check function
Strong resistance to electromagnetic and light interference
Strong vibration resistance, excellent waterproof and dustproof performance
Optical axis spacing can be 20mm, 40mm, 80mm
Double PNP/NPN signal output, equipped with controller to provide double relay signal output
LED indicates working and failure status
External controller can be configured to provide double-sided protection
Dual PNP output with security monitoring (NPN output customizable) (SNC)

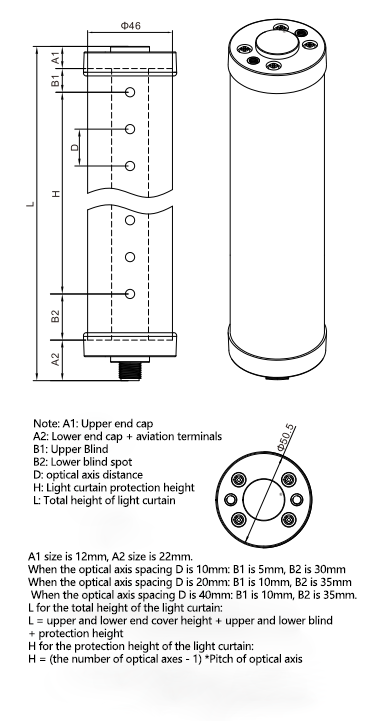

Overall dimensions

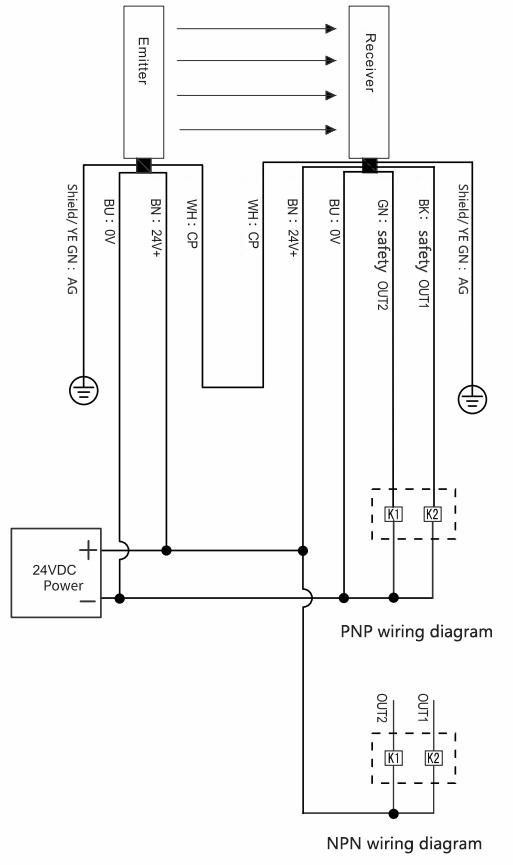

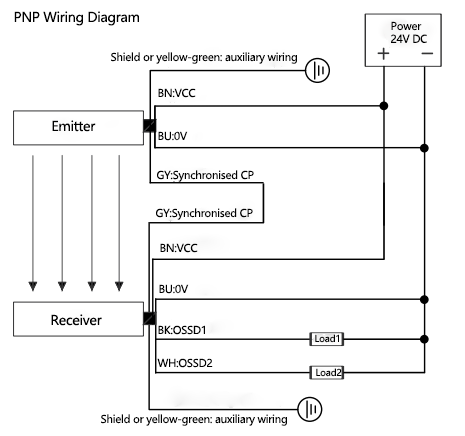

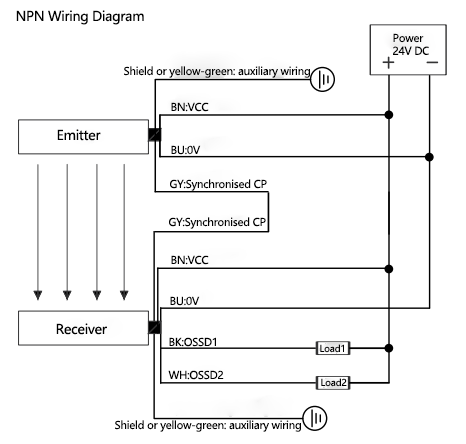

Wiring diagram
