FD-EP09

FD-EP pin shaft gravity sensor is mainly applied to cranes, tower cranes, ports, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The rated load is 9t

Sensitivity 1.0±0.1mV/V

The accuracy grade is 0.5

Rated excitation voltage 9...30VDC

Rated output current 4...20mA

Input impedance 750±50Ω

Output impedance 702±3Ω

Insulation resistance≥5000mΩ

Basic parameters

Rated load9T

Accuracy class0.5

Sensitivity 1.0±0.1mV/V

Linear error 0.5%F.S

Hysteresis error0.5%F.S

Creep（30 minutes）±0.1%F.S

Zero temperature effect±0.05%F.S/10℃

Temperature effect on sensitivity±0.1%F.S/10℃

Safety load150%F.S

Breaking load300%F.S

Electrical parameters

Rated excitation voltage9…30VDC

Rated output current4…20mA

Input impedance750±50Ω

Output impedance702±3Ω

Insulation resistance≥5000MΩ

Mechanical parameters

MaterialAlloy steel

CableLength can be customized

Environmental conditions

Operating temperature﹣30…+80℃

Storage temperature﹣40…+85℃

Protection classIP68

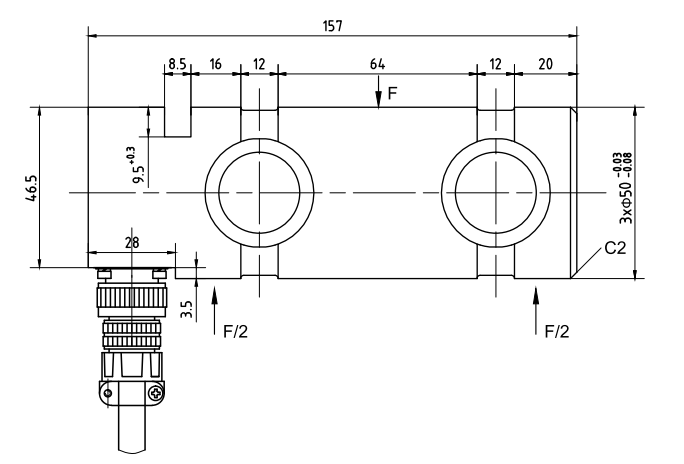

Overall dimensions

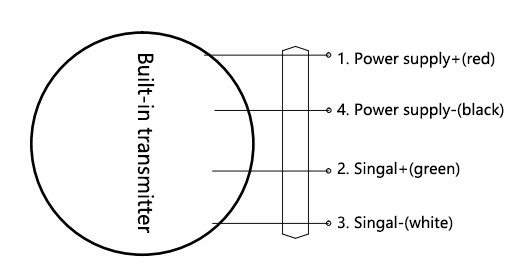

Wiring diagram
