FD-EC5

FD-EC column gravity sensor is mainly used for ground scale, rail scale, truck scale,axle weight scale, material tower weighing, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The rated load is 5T

Sensitivity 3.0002mV/V

The accuracy grade is 0.03

Zero balance 0.32% F.S

Rated excitation voltage 10...12VDC

Maximum excitation voltage 15VDC

Input impedance 400±20Ω

Output impedance 352±3Ω

Insulation resistance≥5000mΩ

Basic parameters

Rated load5T

Accuracy class0.03

Sensitivity3.0002mV/V

Total error±0.1%F.S

Creep（30 minutes）±0.1%F.S

Zero balance0.32%F.S

Zero temperature effect±0.05%F.S/10℃

Influence of output temperature±0.05%F.S/10℃

Safety load150%F.S

Breaking load200%F.S

Electrical parameters

Rated excitation voltage10…12VDC

Max. excitation voltage15VDC

Input impedance400±20Ω

Output impedance352±3Ω

Insulation resistance≥5000MΩ

Mechanical parameters

MaterialAlloy steel

CableΦ5，Length can be customized

Environmental conditions

Operating temperature﹣30…+70℃

Protection classIP67

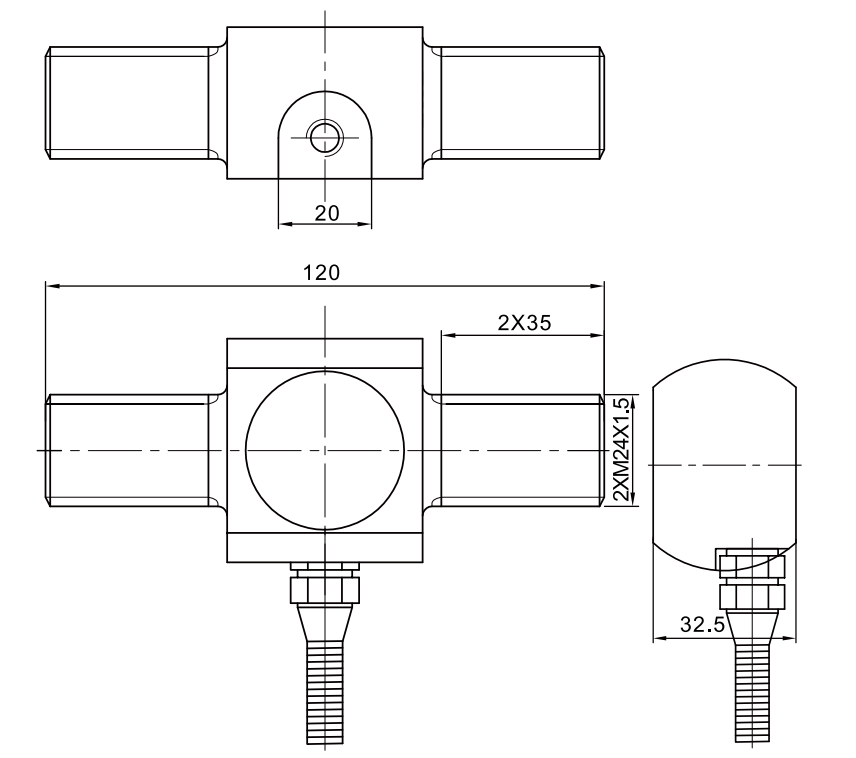

Overall dimensions

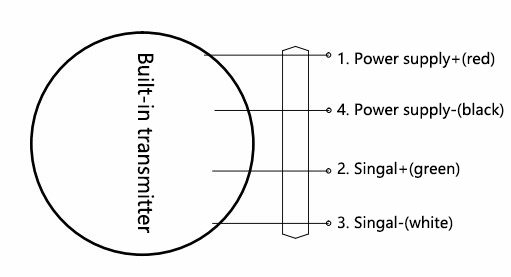

Wiring diagram
