FD-EHC

FD-EHC

FD-EHC cantilever gravity sensor is mainly applied to batching control system, platform scale, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

The rated load is 0.1 , 0.15 , 0.2 , 0.25 , 0.3 , 0.5 , 0.75 , 1 , 1.5 , 2 , 2.5

Sensitivity 3.0003mV/V

Accuracy class C2/C3

Rated excitation voltage 5...12VDC

Maximum excitation voltage 15Vdc

Input impedance 400±20Ω

Output impedance 352±3Ω

Insulation resistance≥5000mΩ

Basic parameters
Rated load0.1，0.15，0.2，0.25，0.3，0.5，0.75，1，1.5，
2，2.5，3，5，7.5，10T
Accuracy classC2/C3
Sensitivity 0.1…0.3T：2.0±0.002mV/V
0.5…10T：3.0±0.003mV/V
Linear error ±0.03%F.S
Hysteresis error±0.03%F.S
Creep（30 minutes）±0.02%F.S
Zero temperature effect±0.02%F.S/10℃
Temperature effect on sensitivity±0.02%F.S/10℃
Safety load150%F.S
Breaking load200%F.S
Electrical parameters
Rated excitation voltage5…12VDC
Max. excitation voltage15VDC
Input impedance400±20Ω
Output impedance352±3Ω
Insulation resistance≥5000MΩ
Mechanical parameters
MaterialAlloy steel
CableLength can be customized
Environmental conditions
Rated temperature﹣10…+40℃
Operating temperature﹣30…+70℃
Protection class0.1…0.75T：IP67
1…10T：IP68

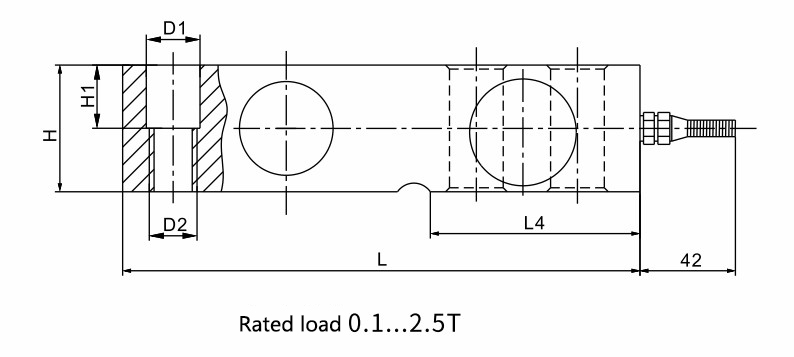

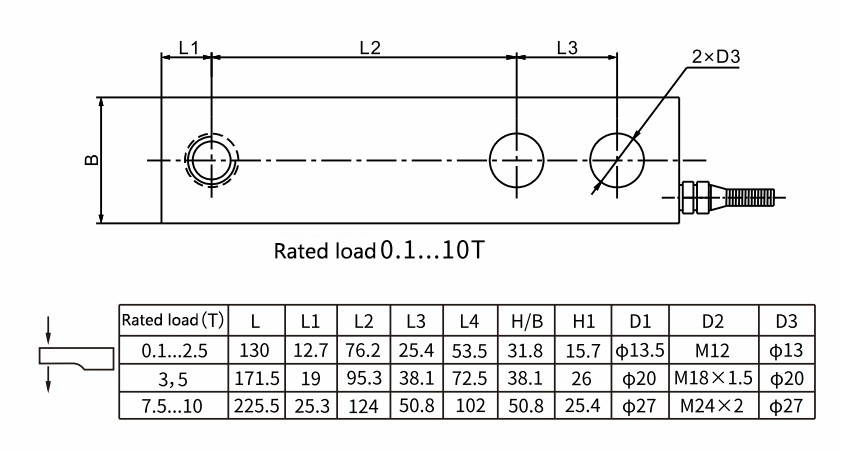

Overall dimensions

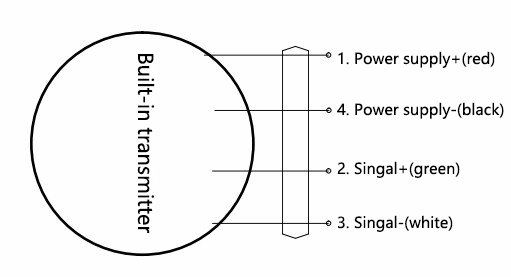

Wiring diagram
