FD-EO

FD-EO pressure type gravity sensor is mainly applied to cranes, tower cranes, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The rated load is 25t

Sensitivity 1.0±0.1mV/V

Accuracy class is 3

Rated excitation voltage 9...30VDC

Rated output current 4...20mA

Input impedance 10.0mΩ

Output impedance 17.5MΩ

Insulation resistance≥5000MΩ

Basic parameters

Rated load25T

Accuracy class3

Sensitivity 1.0±0.1mV/V

Linear error ±1.0%F.S

Hysteresis error0.5%F.S

Creep（30 minutes）±0.1%F.S

Zero temperature effect±0.05%F.S/10℃

Temperature effect on sensitivity±0.1%F.S/10℃

Safety load300%F.S

Breaking load500%F.S

Electrical parameters

Rated excitation voltage9…30VDC

Rated output current4…20mA

Input impedance10.0MΩ

Output impedance17.5MΩ

Insulation resistance≥5000MΩ

Mechanical parameters

MaterialAlloy steel

CableΦ6，Length can be customized

Environmental conditions

Rated temperature﹣40…+85℃

Operating temperature﹣30…+80℃

Protection classIP67

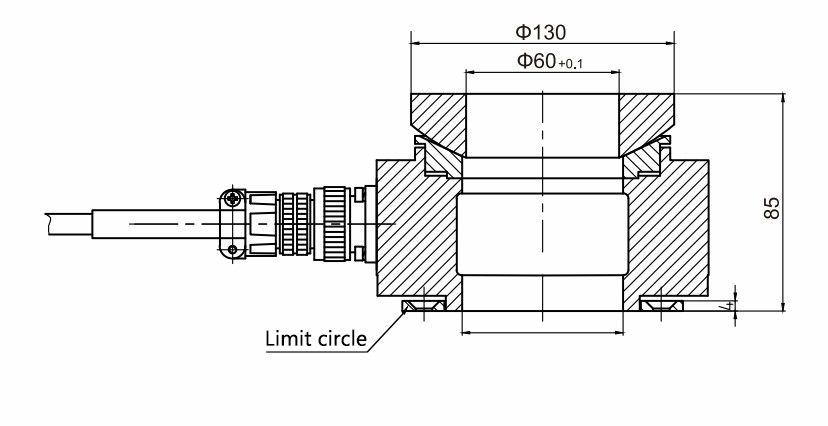

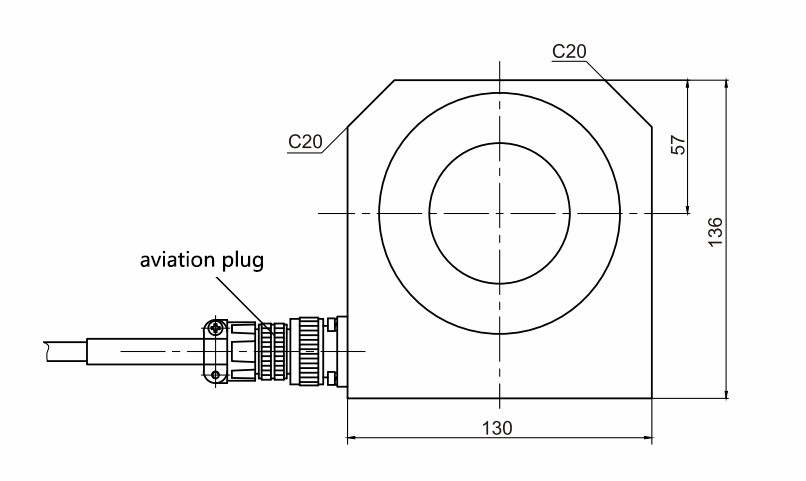

Overall dimensions

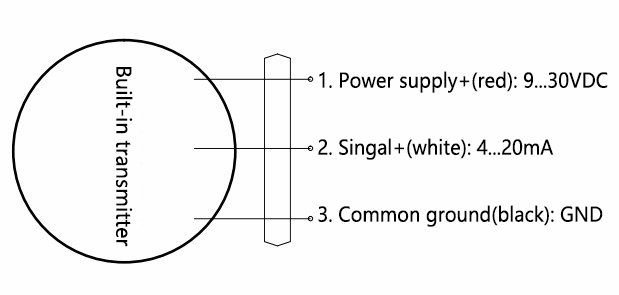

Wiring diagram
