FD-EB

FD-EB bellows gravity sensor is mainly used for batching weighing, hopper weighing, storage weighing, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

The rated load is 5...500kg

Sensitivity 2.0±0.002mV/V

Accuracy class C3

Rated excitation voltage 10...12VDC

Input impedance 400±20Ω

Output impedance 352±3Ω

Insulation resistance≥5000mΩ

Basic parameters

Rated load5，10，20，30，40，50，75，100，150，200，
250，300，500Kg

Accuracy classC3

Sensitivity2.0±0.002mV/V

Linear error0.02%F.S

Hysteresis error0.02%F.S

Creep（30 minutes）±0.015%F.S

Zero temperature effect±0.015%F.S/10℃

Influence of output temperature±0.015%F.S/10℃

Safety load150%F.S

Breaking load200%F.S

Electrical parameters

Rated excitation voltage10…12VDC

Input impedance400±20Ω

Output impedance352±3Ω

Insulation resistance≥5000MΩ

Mechanical parameters

MaterialAlloy steel

CableLength can be customized

Environmental conditions

Operating temperature﹣30…+70℃

Protection classIP68

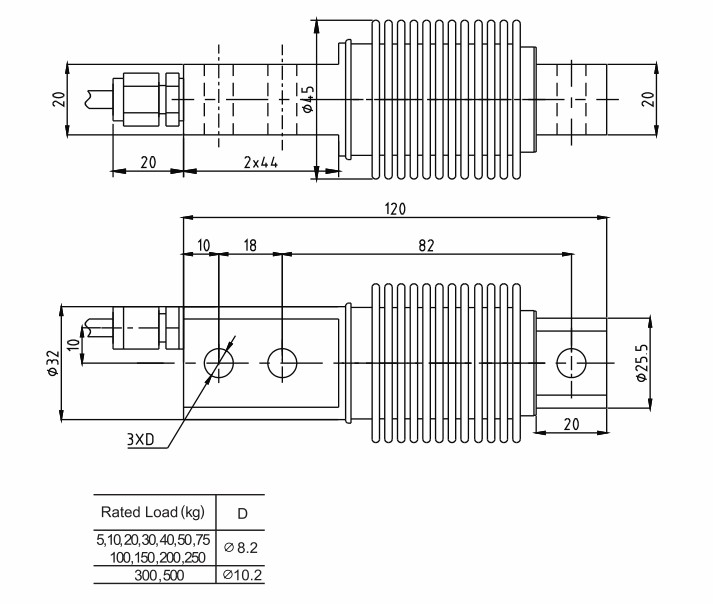

Overall dimensions

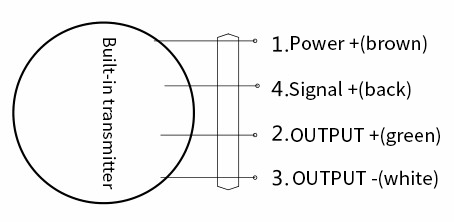

Wiring diagram
