M05 series compression type proximity switch is used in special scenes in narrow space, and the minimum sensing distance is 0.6mm.
Type of sample : PR00.R6-M05P10S2-D.*
M5 diameter thread cylindrical appearance
DC3 wire, stainless steel housing
Sensing distance is 0.6mm, flush / non flush installation
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Flexible configuration,Cable output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Standard
Economy

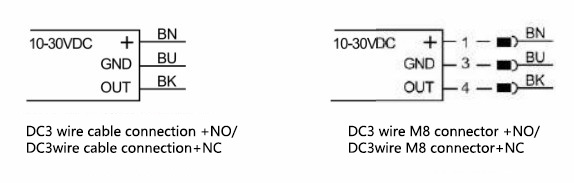

Wiring diagram
