Φ06 series DC3 wire proximity switch, the product universal strong, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry, the minimum induction distance is 1mm.
Type of sample 1：PR00.02-Φ06P10S2-Y.*
Type of sample 2：PR01.04-Φ06P10S2-YE.*
Smooth cylindrical appearance with diameter of Φ6.5
Stainless steel case
Induction distance 1...6mm, flush/non-flush mounting
With 360° visible signal output indicator light
Short circuit protection function, power supply is connected to reverse protection
The signal output is PNP or NPN
Flexible configuration, cable or connector or wire connector output
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

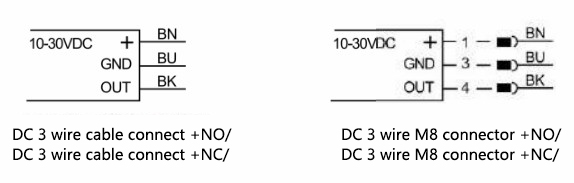

Wiring diagram
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 2m
The connector is a straight structure with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 5m
The connector is a straight structure with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 10m
The connector is a straight structure with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 2m
The connector is a straight structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 5m
The connector is a straight structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 10m
The connector is a straight structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 2m
The connector is L-shaped with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 5m
The connector is L-shaped with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 10m
The connector is L-shaped with 3 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 2m
The connector is of L-shaped structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 5m
The connector is of L-shaped structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
Flexible PVC connection cable with M8 connector.
M8 connector cable, cable length 10m
The connector is of L-shaped structure with 4 pins
Excellent wear resistant plastic shell
Pure copper contact connection
With lock nuts
A raised socket construction for easy connection
