Φ06 series DC4 wire proximity switch, the product universal strong, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry, the minimum induction distance is 2mm.
Type of sample 1：PR00.02-Φ06P22S2-YE.*
Type of sample 2：PR01.04-Φ06N22S2-YE.*
Smooth cylindrical appearance with diameter of Φ6.5
Stainless steel case
Induction distance 2...4mm, flush/non-flush mounting
With 360° visible signal output indicator light
Short circuit protection function, power supply is connected to reverse protection
Signal output is PNP or NPN, normally open + normally closed output
Flexible configuration, cable or connector output
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

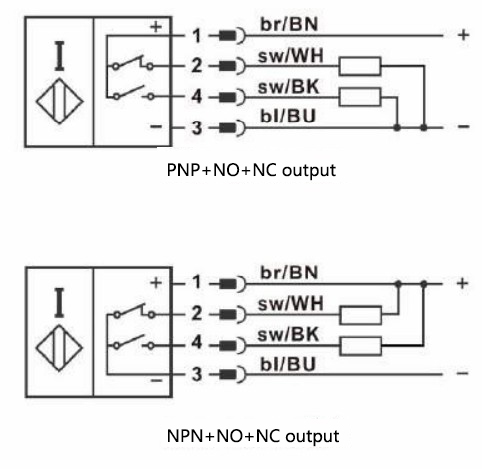

Wiring diagram
