M08 series capacitive proximity switches are used in scenes where non-metallic objects need to be detected the minimum sensing distance is 1mm for products under.
Type of sample 1: PR10.01-M08P10S2-YF.*
Type of sample 2: PR11.02-M08P10S2-YF.*
M8 diameter thread cylindrical appearance
DC3 wire, chrome plated brass housing
Sensing distance 1...2mm, flush / non flush mounting
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is PNP or NPN
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions

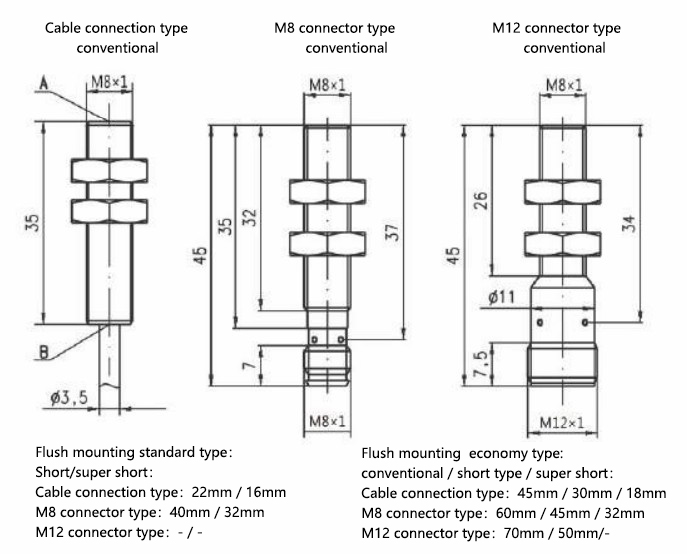

Flush mounting standard type

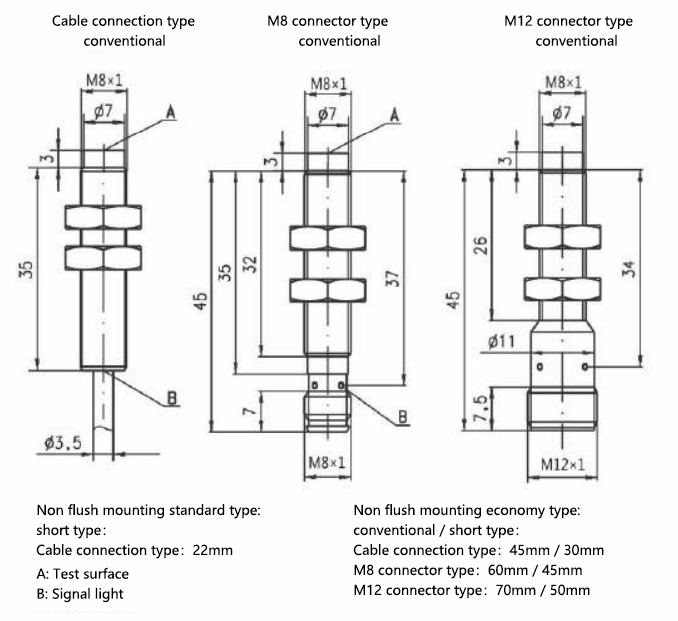

Non flush mounting standard type

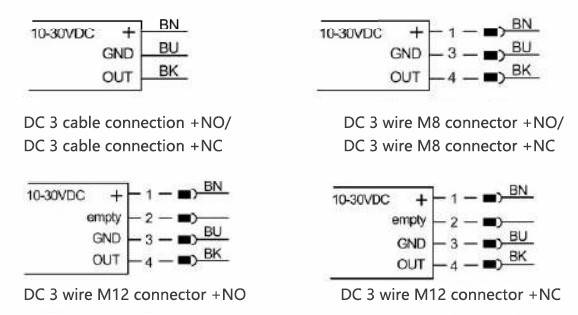

Wiring diagram
