QA8 series DC3 wire proximity switch, the product is universal, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry, the minimum induction distance is 2mm.
Type of sample：PR00.02-QA8P10S2-U.*
Type of sample：PR00.02-QA8N10S2-UE.*
Extremely small overall size, the induction section QA8 is 8×8
Copper plated nickel housing
Induction distance flush 2...3mm
The signal output is PNP or NPN
Save installation space, cable and connector output optional
Short circuit protection function, power supply is connected to reverse protection
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions
Flush mounting

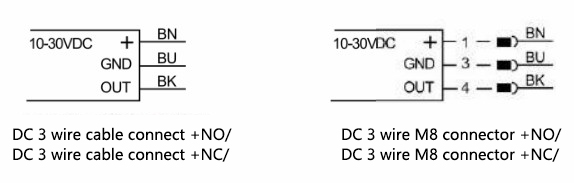

Wiring diagram
