Q18 series DC2 wire proximity switch, the product is versatile, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry, the minimum induction distance is 4mm.
Type of sample：PR00.04-Q18D10S2-UE.*
The induction cross section is 18×18
Plastic shell material
The induction distance is 4mm flush
The signal output is DC without polarity
Save installation space, low price
Short circuit protection function, power supply is connected to reverse protection
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments

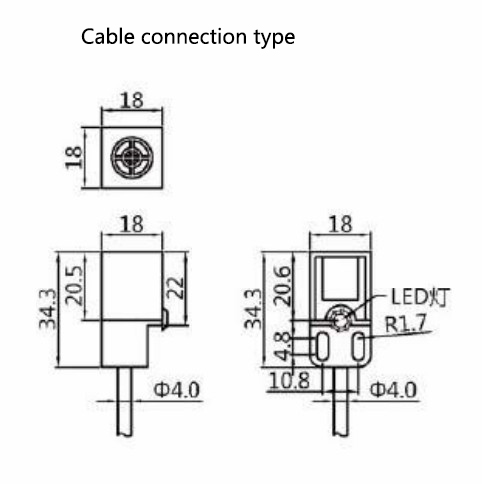

Overall dimensions
Flush mounting

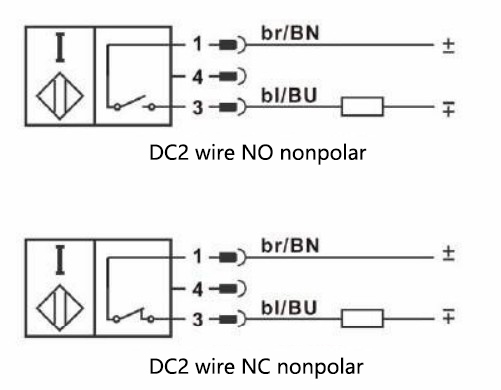

Wiring diagram
