Q40 series DC4 wire proximity switch, the product is versatile, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry.
Type of sample：PR00.20-Q40P22T4-U.*
The size is 40 x 40 square appearance
Plastic shell material
Induction distance flush 20mm, non-flush 40mm
The signal output is PNP×2 or NPN×2
With signal output indicator light
Short circuit protection function, power supply is connected to reverse protection
The M12 connector or terminal connection mode is optional
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions
M12 connector type
Terminal type

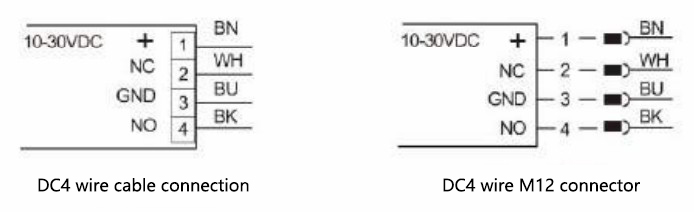

Wiring diagram
