Q40 series DC3 wire proximity switch, the product is versatile, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry.
Type of sample：PR01.40-Q40P10T4-UE.*
The size is 40 x 40 square appearance
Plastic shell material
Induction range flush 15...20mm, non-flush 30...40mm
The signal output is PNP or NPN
With signal output indicator light
Short circuit protection function, power supply is connected to reverse protection
The M12 connector or terminal connection mode is optional
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions
M12 connector type
Terminal type

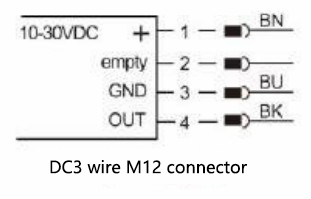

Wiring diagram
