Q40 series DC2 wire proximity switch, the product is versatile, used in metallurgy, packaging, carpentry, machinery manufacturing and so on industry.
Type of sample：PR00.15-Q40D10T4-UE.*
The size is 40 x 40 square appearance
Housing is PA plastic or chrome brass
Induction distance flush 15mm, non-flush 20...30mm
Signal output is PNP,NPN or DC without polarity
With signal output indicator light
Short circuit protection function, power supply is connected to reverse protection
The M12 connector or terminal connection mode is optional
Through up to 1 million life testing tests
All components and circuits are tested in harsh and complex electromagnetic environments
Overall dimensions

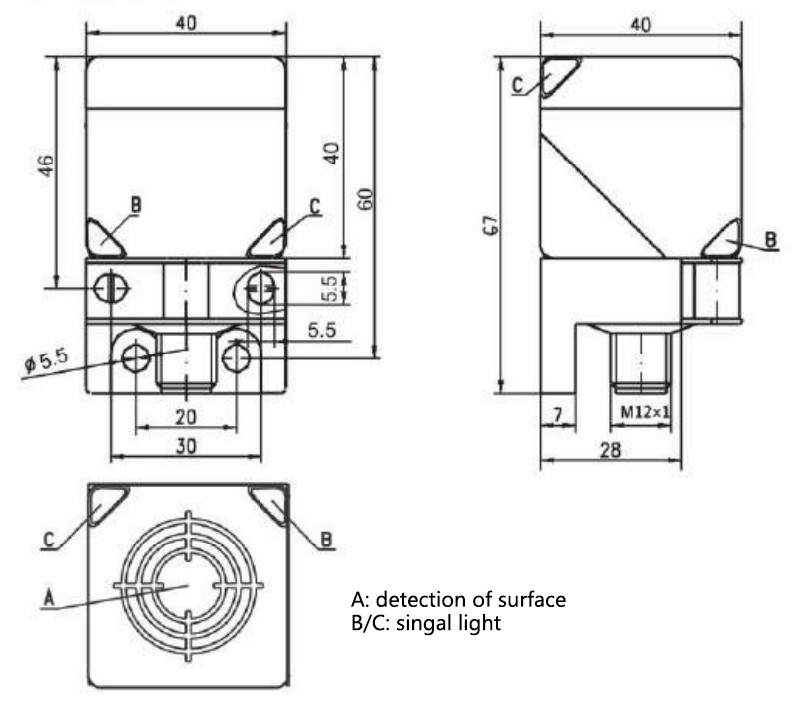

M12 connector type

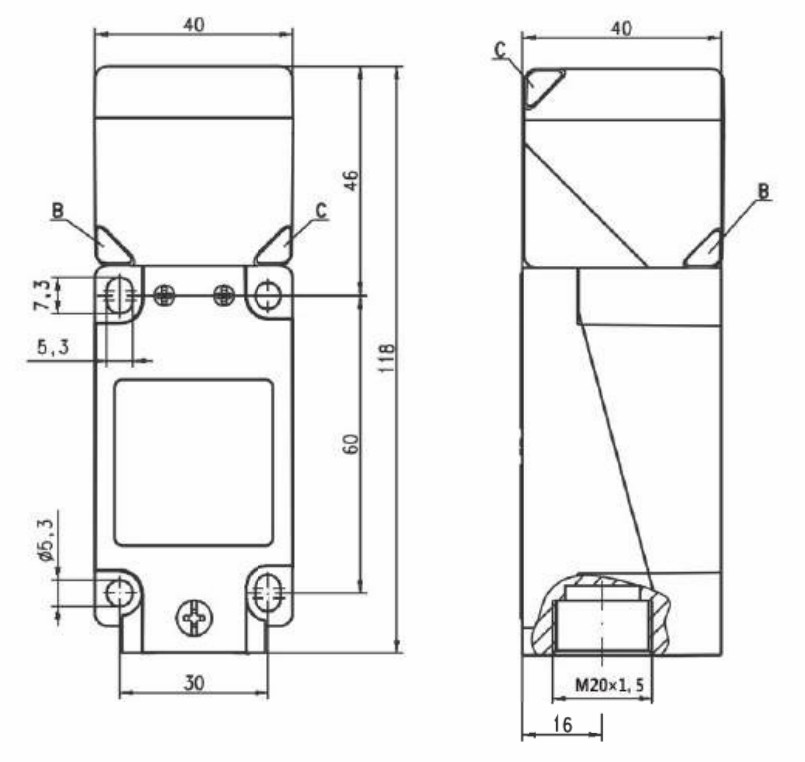

Terminal type

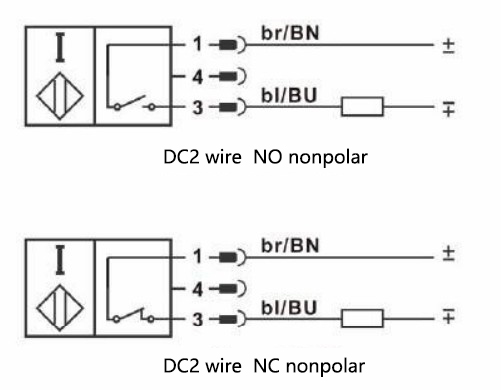

Wiring diagram
