M12 series DC2 line proximity switches are used in metallurgy, packaging, woodworking, machinery manufacturing, etc industry, the minimum sensing distance is 2mm.
Type of sample 1: PR00.02-M12D10S2-Y.*
Type of sample 2: PR01.08-M12D10S2-YE.*
Cylindrical appearance with diameter M12
Stainless steel / chrome plated brass housing
Sensing distance 2...4mm, flush / non flush mounting
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is DC non polarity
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions
Flush mounting standard type
Non flush mounting standard type

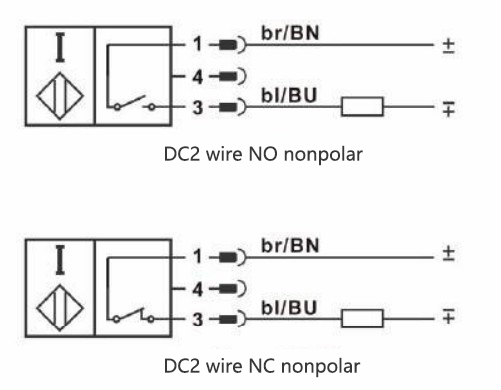

Wiring diagram
