M12 series all stainless steel AC2 line proximity switch is generally used in food, sanitation, metallurgy, casting, engineering machinery, etc for industries with special requirements, the minimum sensing distance is 2mm.
Type of sample : PR00.02-M12A10S2-SE.*
Cylindrical appearance with diameter M12
AC2 wire, shell and detection surface are made of stainless steel
Sensing distance 2...4mm, flush / non flush mounting
With 360 °visible signal output indicator
Short circuit protection function, reverse power connection protection
The signal output is AC non polarity
Flexible configuration, cable or connector output
Through up to 1 million life detection tests
All components and circuits have been tested in harsh environment and complex electromagnetic environment
Overall dimensions

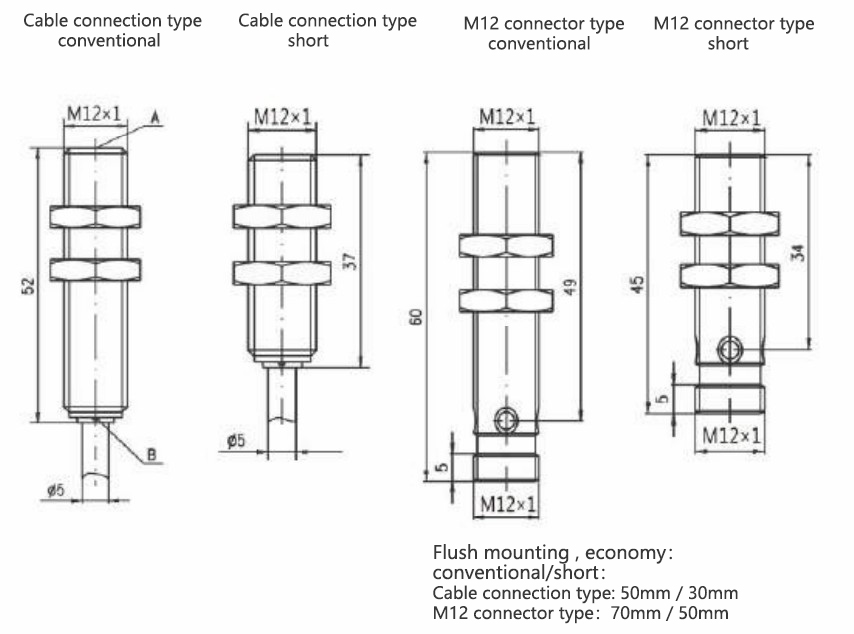

Flush mounting standard type

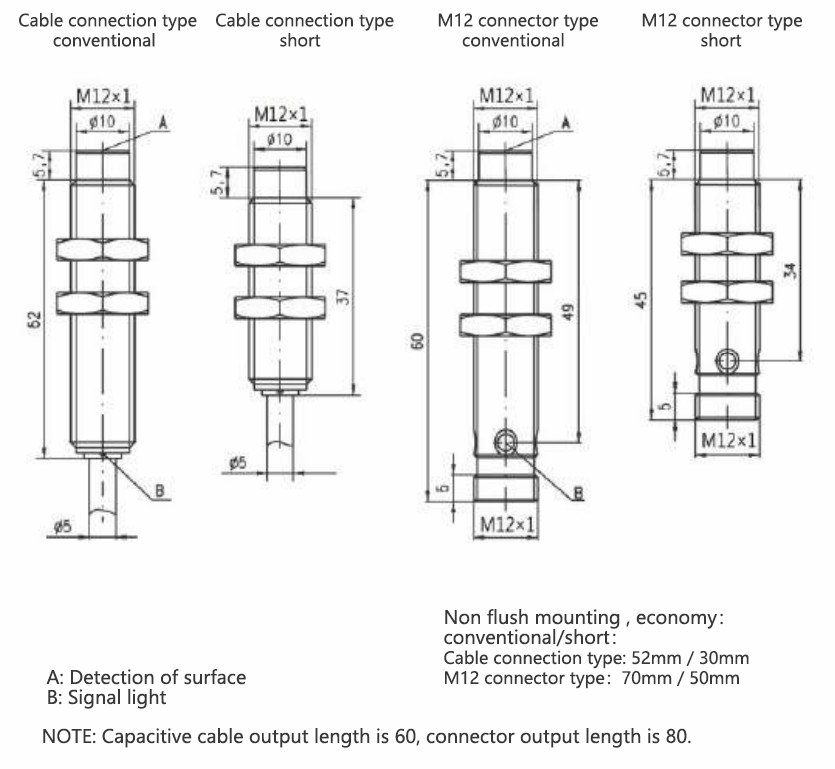

Non flush mounting standard type

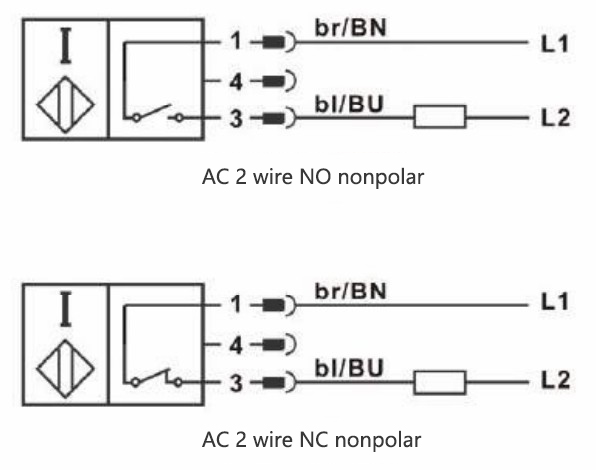

Wiring diagram
