FD100.10A-38X0

FD100.10A-38X0

FD100.10A-38X0 incremental solid shaft encoder, applicable in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Small encoder, outer diameter of 38mm

Incremental solid shaft encoder

The number of output pulses can be up to 3600 when it is normal

Signal output mode is push-pull output or RS422

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters
Outside diameter38mm
Shaft diameter6mm
Maximum speed of revolution5000 r
Maximum shaft loadAxial/radial：20N / 30N
Starting torque＜1Ncm
Moment of inertia＜3gcm2
Electrical parameters
Power supply5…30VDC
Output singal5…30VDC：push-pull
Working currentPush-pull：30mA
Resolution50，60，100，200，300，360，400，500
600，800，1000，1024，1200，1500，1800，
2000，2048，2500
Output frequencyMax 100KHz
Electrical interfaceCable connection：5×0.08mm²，0.5m
Mechanical parameters
Flange typeSpannflansche
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 160g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；110m/s² 3ms
Environmental conditions
Operating temperature﹣10…+70℃
Storge temperature﹣25…+85℃
Protection classIP50

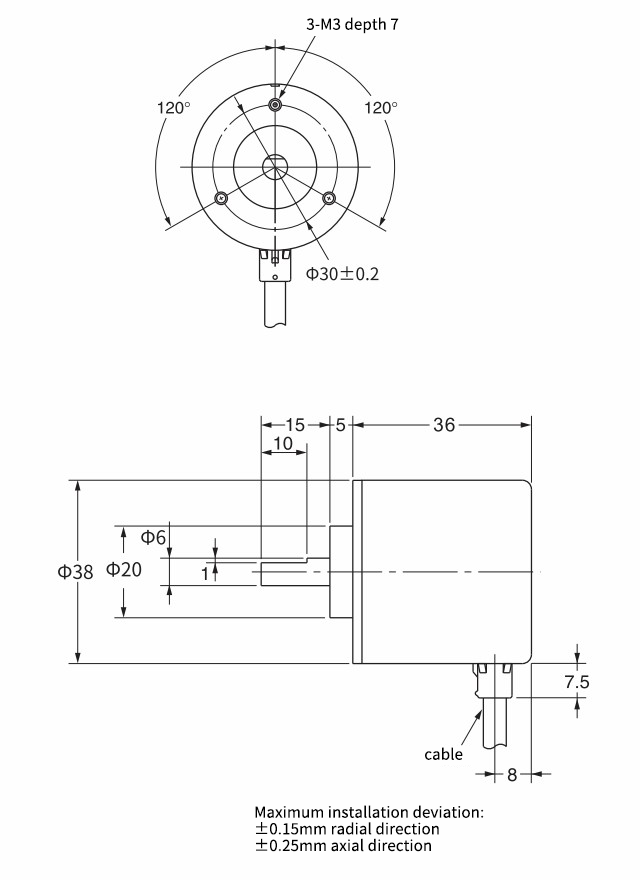

Overall dimensions

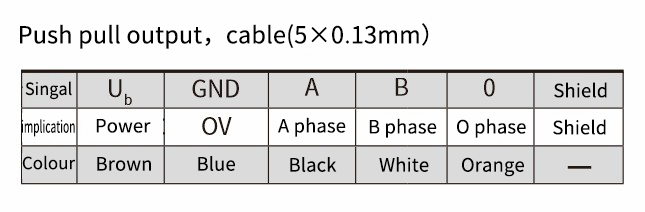

Wiring diagram
