FD100.10A-40X0

FD100.10A-40X0

FD100.10A-40X0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Compact and economical encoder, only 40mm diameter

Incremental solid shaft encoder

The number of output pulses can be up to 3600 when it is normal

The signal output mode is push-pull output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters
Outside diameter40mm
Shaft diameter6mm
Maximum speed of revolution6000 r
Maximum shaft loadAxial/radial：20N / 30N
Starting torque＜0.5Ncm
Moment of inertia＜1gcm2
Electrical parameters
Power supply5…30VDC
Output singal5…30VDC：push-pull
Working currentPush-pull：30mA
Resolution10，20，30，40，50，60，100，200，360，
400，500，600，800，1000，1024，1200，
1500，1800，2000，2048，2500
Output frequencyMax 100KHz
Electrical interfaceCable connection：5×0.08mm²，0.5m
Mechanical parameters
Flange typeSpannflansche
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 100g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣10…+70℃
Storge temperature﹣25…+85℃
Protection classIP54

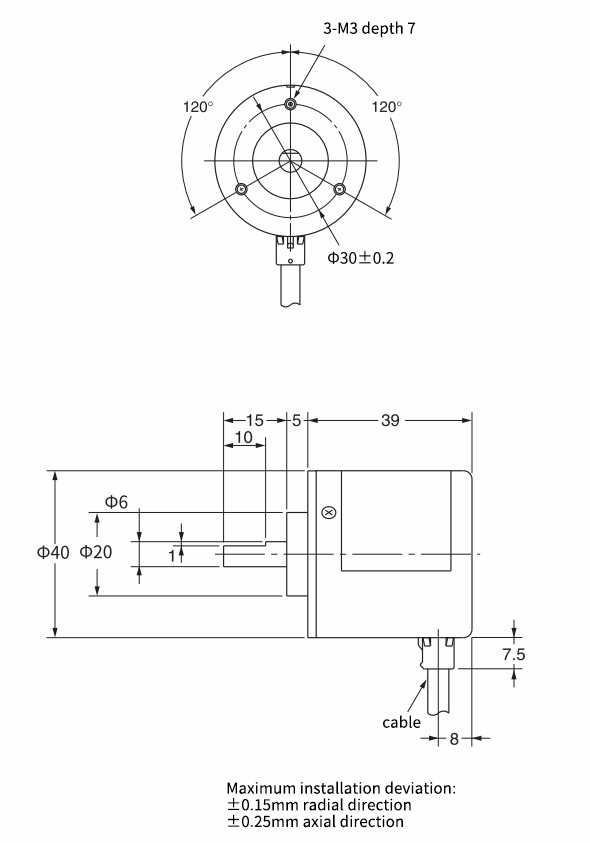

Overall dimensions

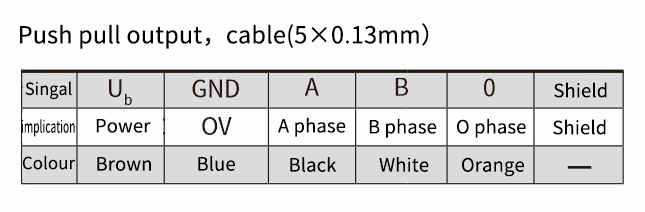

Wiring diagram

FD100.10A-40X0接线图-英 .png
