FD100.10A-50X0

FD100.10A-50X0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Small shape economic encoder, outer diameter of 50mm

Incremental solid shaft encoder

The number of output pulses can be up to 3600 when it is normal

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters

Outside diameter50mm

Shaft diameter8mm

Maximum speed of revolution6000 r

Maximum shaft loadAxial/radial：30N / 50N（general）；
50N/80N（Specific）

Starting torque＜1Ncm

Moment of inertia＜5gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

ResolutionGeneral：50，100，200，360，400，500 , 1000，
1024
Specific：100，200，300，360，500 , 600 , 800，
1000，1024，1200，1500，1800，2000，
2048，2500，3600

Output frequencyMax 100KHz

Electrical interfaceCable connection (push-pull)：5×0.08mm²，0.5m
Cable connection (RS422) : 8×0.08mm²，
0.5m

Mechanical parameters

Flange typeSpannflansche

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 300g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣10…+70℃

Storge temperature﹣25…+85℃

Protection classIP54

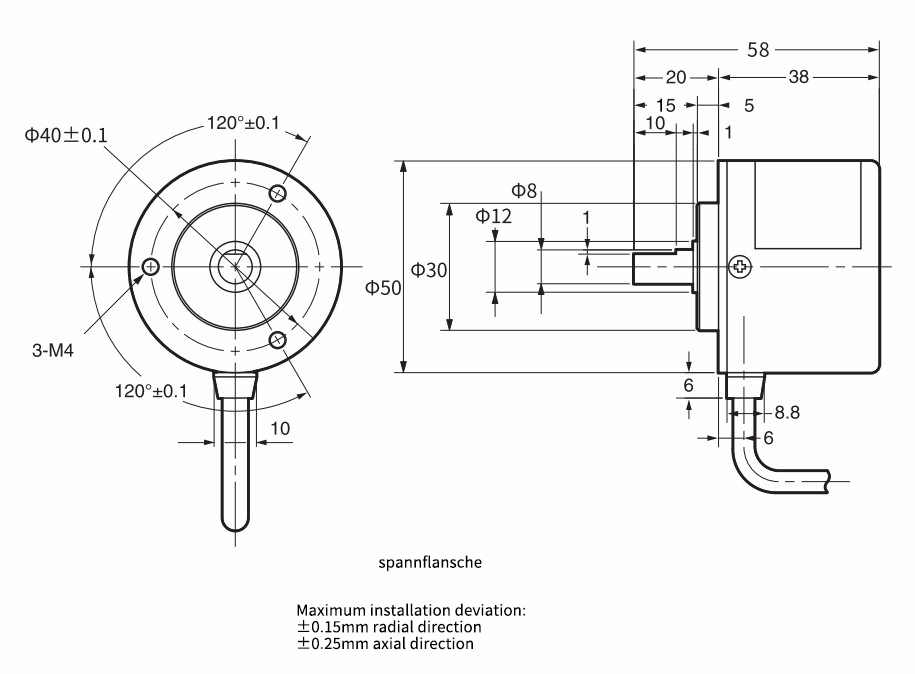

Overall dimensions

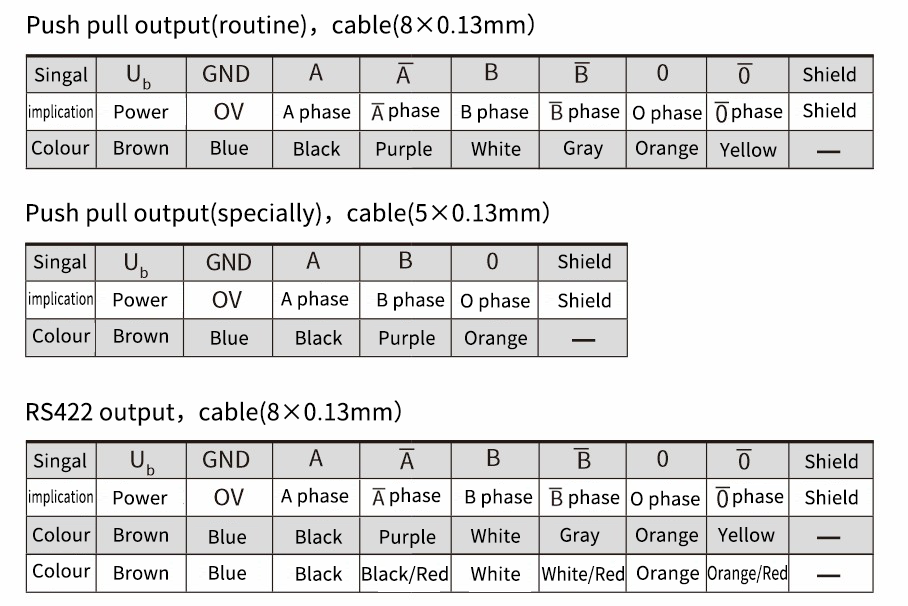

Wiring diagram
