FD100.10A-5060

FD100.10A-5060 series are widely used in various types of machine control,especially in textile, packaging, printing industry is more concentrated.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Small shape economic encoder, outer diameter of 50mm

Incremental solid shaft encoder

The output pulse number can reach 6000

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Small size, light weight, high precision

Basic parameters

Outside diameter50mm

Shaft diameter8mm

Maximum speed of revolution6000 r

Maximum shaft loadAxial/radial：20N / 30N

Starting torque0.1Ncm

Moment of inertia＜5gcm2

Electrical parameters

Power supply10…30VDC；5VDC

Output singal10…30VDC：push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA；
open-collector output

Resolution30，50，60，100，200，300，360，500，600，
800，,1000，1024，1200，1500，1800，
2000，2048，2500，3600，4000，5000，
6000，Other customizable

Output frequencyMax 300KHz

Electrical interfaceCable connection (push-pull) : 5×0.2mm²，2m
Cable connection (RS422): 8×0.2mm²，2m

Mechanical parameters

Flange typeSpannflansche

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 200g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣20…+85℃

Storge temperature﹣30…+90℃

Protection classIP54/IP65

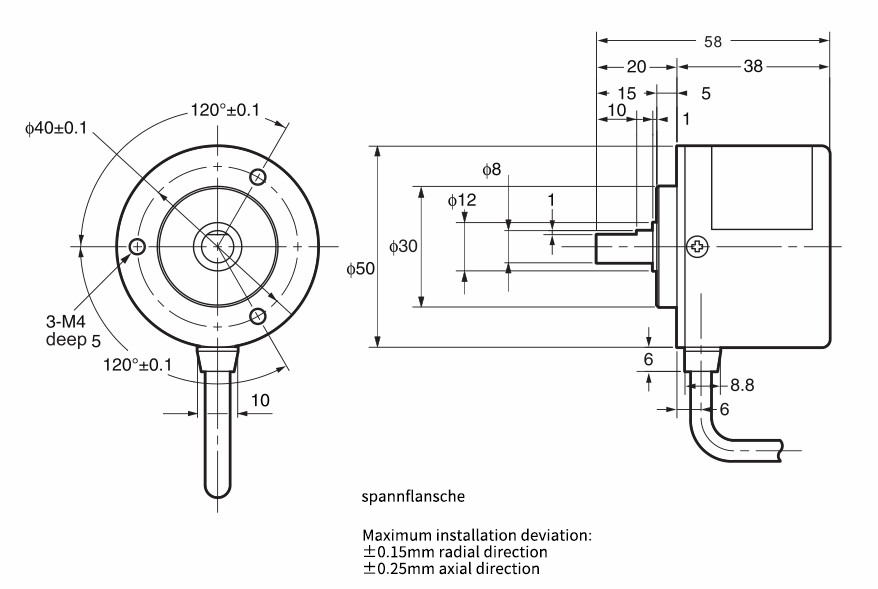

Overall dimensions

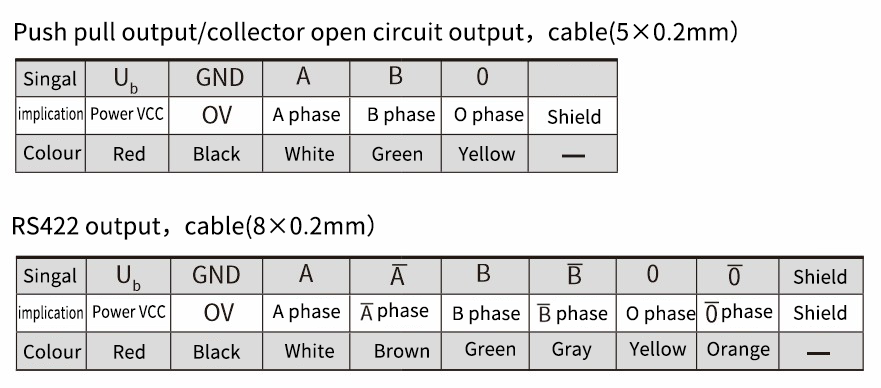

Wiring diagram
