FD100.10A-58X0

FD100.10A-58X0 incremental solid shaft encoder, suitable for servo motor field, elevator field,industrial robot field, industrial automation control production line field.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Commonly used standard size encoder, outer diameter is 58mm

Incremental solid shaft encoder

The number of output pulses can be up to 1500 in general and 10000 in general

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters

Outside diameter58mm

Shaft diameter6mm，10mm

Maximum speed of revolution6000 r

Maximum shaft loadAxial/radial：30N / 60N（general）
50N/100N（universal）

Starting torque＜1Ncm

Moment of inertia＜20gcm²

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

ResolutionGeneral：100，125，250，360，500，512 , 600，
1000，1024，1500
Universal：100，200，360，500，600，1000，
1024，1500，2048，2500，3600，5000，
10000

Output frequencyMax 100KHz

Electrical interface8×0.08mm²，0.5m

Mechanical parameters

Flange typeSpannflansche，Synchronous flange

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 380g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣10…+70℃ / ﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP54（general）/ IP67（universal）

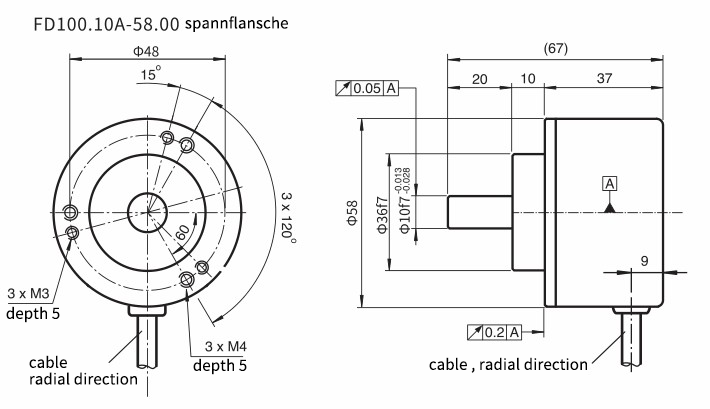

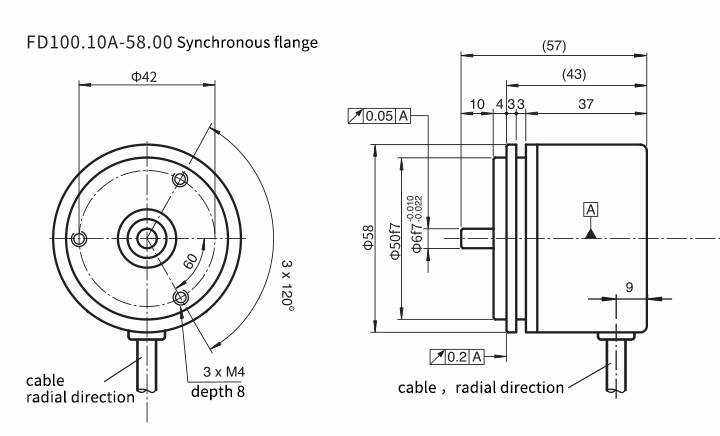

Overall dimensions

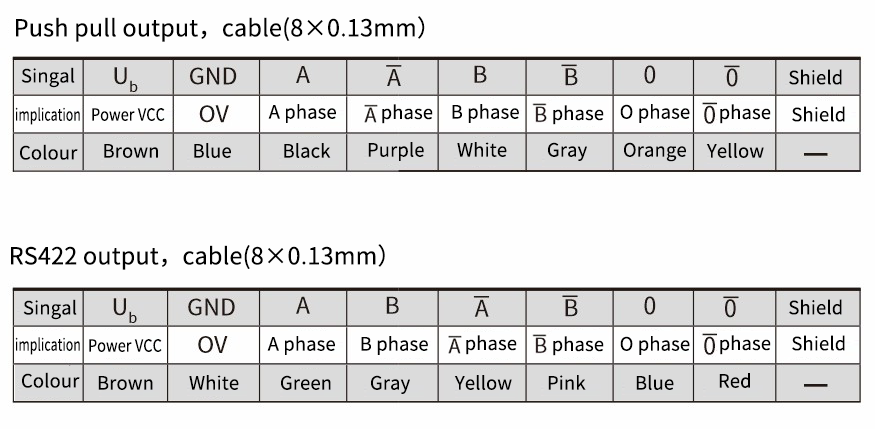

Wiring diagram
