FD100.10A-38X1

FD100.10A-38X1 incremental hollow shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

Compact and economical encoder, only 38mm diameter

Incremental hollow shaft encoder

The output pulse number can reach 2500

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters

Outside diameter38mm

Shaft diameter8mm

Maximum speed of revolution5000 r

Maximum shaft load——

Starting torque＜1Ncm

Moment of inertia＜3gcm²

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：push-pull；5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution25，50，100，150，180，200，250，360，400，
500，1000，1024

Output frequencyMax 200KHz

Electrical interfaceRadial cable connection，1m

Mechanical parameters

Flange type——

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 160g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；200m/s² 3ms

Environmental conditions

Operating temperature﹣10…+70℃

Storge temperature﹣25…+85℃

Protection classIP50

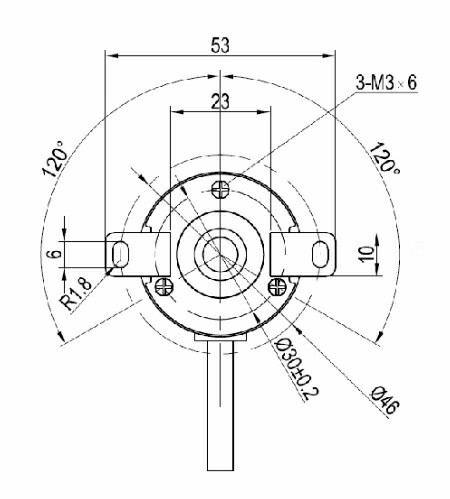

Overall dimensions

FD100.10A-38X1尺寸图1~1.jpg FD100.10A-38X1尺寸图2~1.jpg

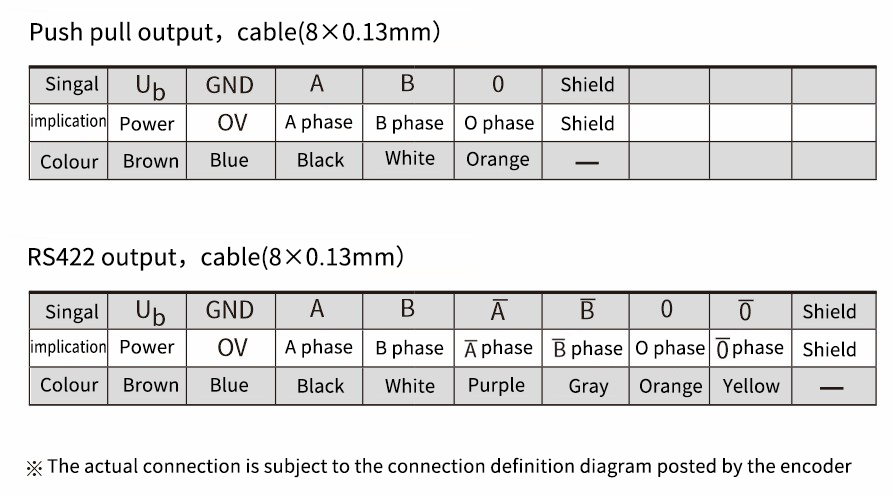

Wiring diagram
