FD100.10A-40X1

FD100.10A-40X1

FD100.10A-40X1 incremental hollow shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Compact and economical encoder, only 40mm diameter

Incremental hollow shaft encoder

The output pulse number can reach 1024

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters
Outside diameter40mm
Shaft diameter6mm，8mm，3/16''，5/16''
Maximum speed of revolution6000 r
Maximum shaft load——
Starting torque＜1Ncm
Moment of inertia＜5gcm²
Electrical parameters
Power supply5…30VDC；5VDC
Output singal5…30VDC：push-pull；5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution25，50，100，150，180，200，250，360，400，
500，1000，1024
Output frequencyMax 100KHz
Electrical interfaceCable connection：8×0.08mm²，2m
Mechanical parameters
Flange type——
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 160g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣10…+70℃
Storge temperature﹣25…+85℃
Protection classIP54

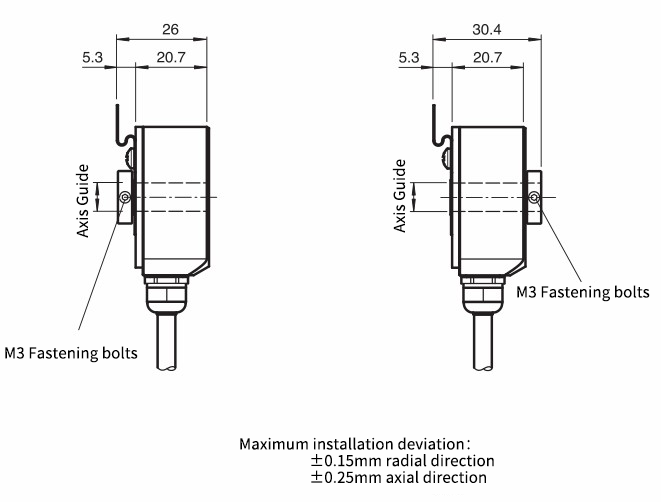

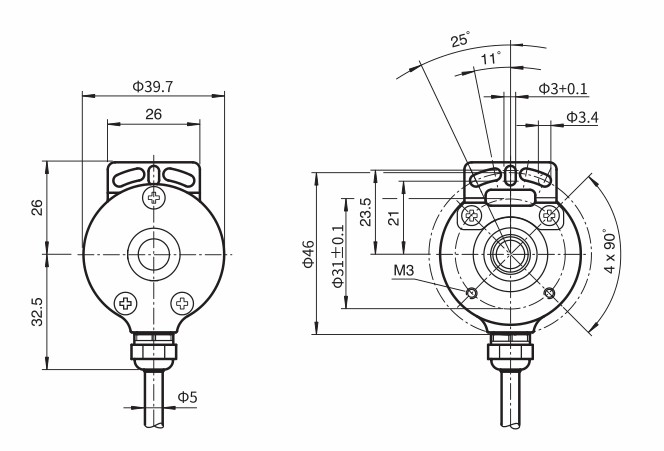

Overall dimensions

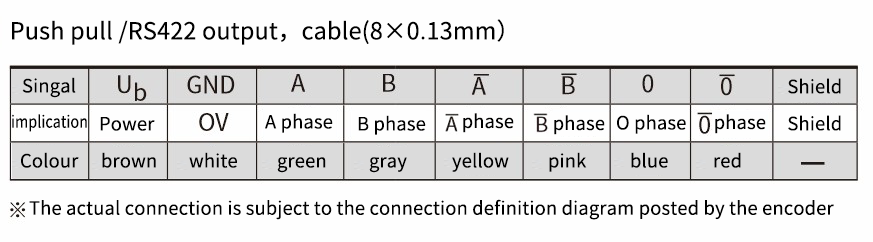

Wiring diagram








Brochures
Manuals
CAD/CAE
Certificate
