FD100.10A-87X1

FD100.10A-87X1

FD100.10A-87X1 incremental hollow shaft encoder, applicable in servo motor field, elevator,industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Economical encoder of general specification, outer diameter 87mm

Incremental hollow shaft encoder

The output pulse number can reach 2500

Signal output mode can be push-pull output and RS422 output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters
Outside diameter87mm
Shaft diameter16mm，20mm，25mm，30mm，38mm，45mm
Maximum speed of revolution3500 r
Maximum shaft load——
Starting torque＜6Ncm
Moment of inertia＜50gcm²
Electrical parameters
Power supply5…30VDC；5VDC
Output singal5…30VDC：push-pull；5VDC：RS422
Working currentPush-pull：30mA；RS422：20mA
Resolution100，360，500，512， 600，1000，1024，
2048，2500
Output frequencyMax 100KHz
Electrical interfaceCable connection：8×0.08mm²，1m
Mechanical parameters
Flange type——
MaterialsShell：AL；Flange：AL；Shaft: stainless steel
WeightAbout 860g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣20…+70℃
Storge temperature﹣25…+85℃
Protection classIP65

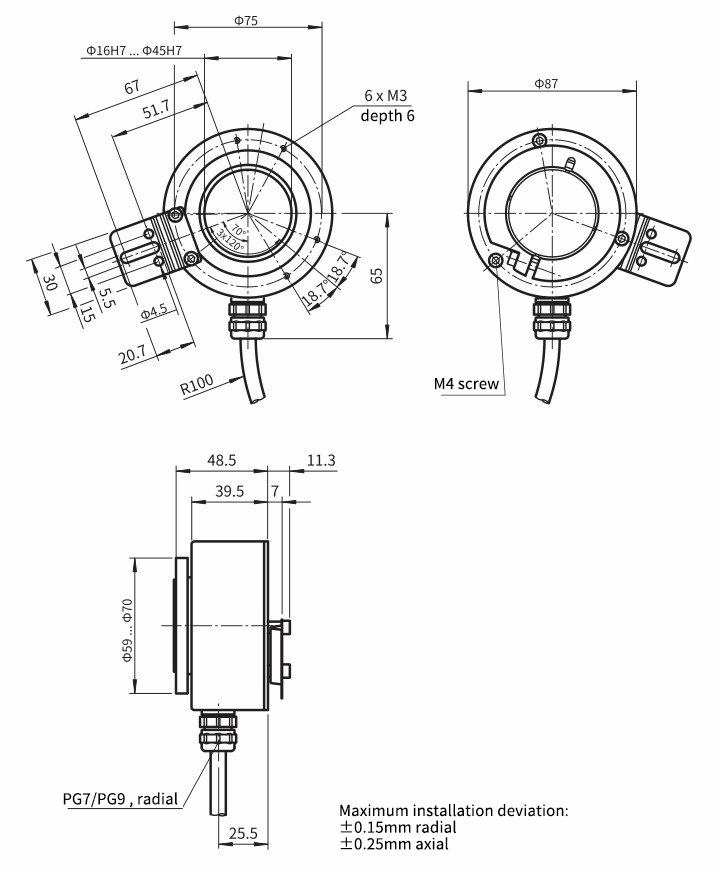

Overall dimensions



Wiring diagram

FD100.10A-87X1接线图~英 .png







Brochures
Manuals
CAD/CAE
Certificate
