FD100.10A-40X2

FD100.10A-40X2

FD100.10A-40X2 incremental mid-air shaft encoder can be used in servo motor, elevator, industrial robot, industrial automation control production line, etc.

For detailed product selection, please contact us Return
Product features Technical data Shape & Wiring Downloads Accessories
Function & Features

Small shape half - air shaft encoder, outer diameter is only 40mm

The number of output pulses can reach 2048

Signal output mode can be RS422 output and NPN output

Adopt metal code plate, can bear higher strength load

Short circuit protection

Basic parameters
Outside diameter40mm
Diameter of half-air bushing8mm
Maximum speed of revolution6000 r
Maximum shaft load——
Starting torque＜0.2Ncm
Moment of inertia＜4gcm²
Electrical parameters
Power supply10…30VDC；5VDC
Output singal10…30VDC：push-pull/NPN；5VDC：RS422
Working currentNPN：30mA；RS422：20mA
Resolution300，360，500，600， 800，1000，1024，
1200，1500，2000，2048
Output frequencyMax 100KHz
Electrical interfaceCable connection：8×0.08mm²，0.5m
Mechanical parameters
Flange type——
MaterialsShell：AL； Flange：AL； Shaft: stainless steel
WeightAbout 180g
Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ
Surge suppressionIEC 68-2-27；200m/s² 3ms
Environmental conditions
Operating temperature﹣10…+70℃
Storge temperature﹣25…+85℃
Protection classIP54

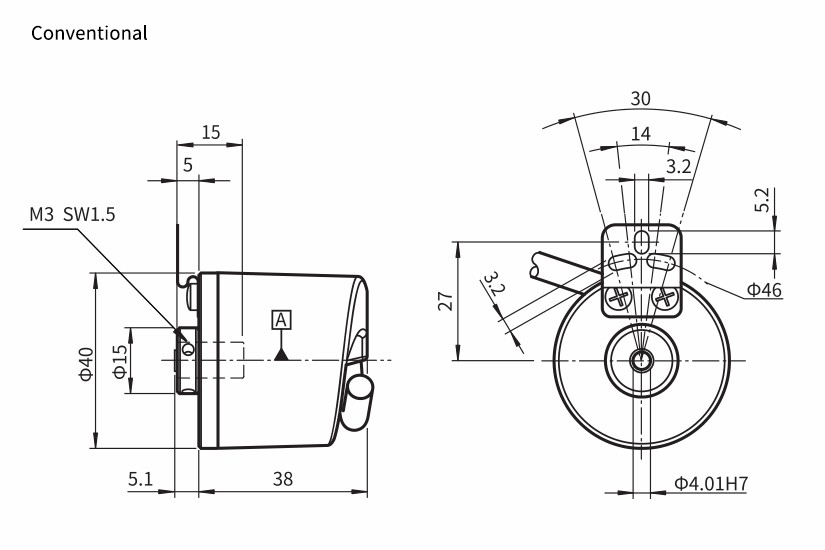

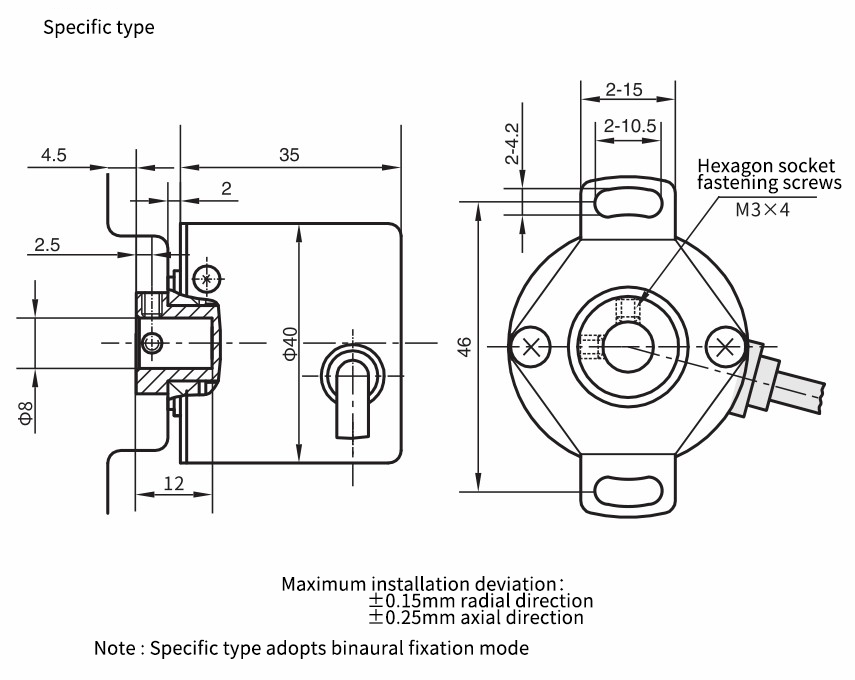

Overall dimensions

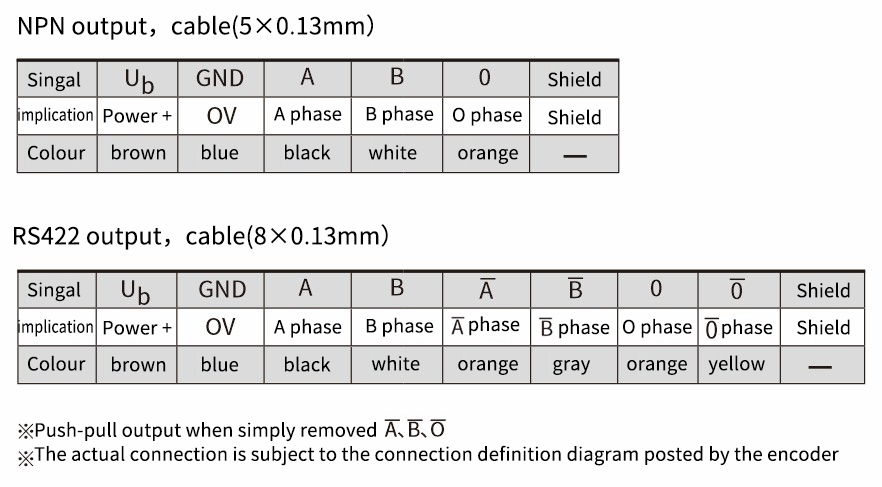

Wiring diagram
