FD100.10B-25X0

FD100.10B-25X0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with very compact shape, outer diameter size of 25mm

The number of output pulses can reach 2500 when it is conventional

The signal output mode is push-pull output and RS422

Using glass code plate, can produce higher resolution output pulse

Short circuit protection

Basic parameters

Outside diameter25mm

Shaft diameter3mm，4mm，6mm

Maximum speed of revolution10000 r

Maximum shaft loadAxial/radial：40N / 80N

Starting torque＜0.3Ncm

Moment of inertia＜0.6gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull； 5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，200，360，400，500，600，800，1000，
1024，1200，1500，1800，2000，2048，
2500

Output frequencyMax 300KHz

Electrical interfaceCable connection：8×0.08mm²，0.5m
Connection：M23，12pin

Mechanical parameters

Flange typeSpannflansche；synchronous flange

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 40g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣40…+80℃

Storge temperature﹣40…+85℃

Protection classIP65

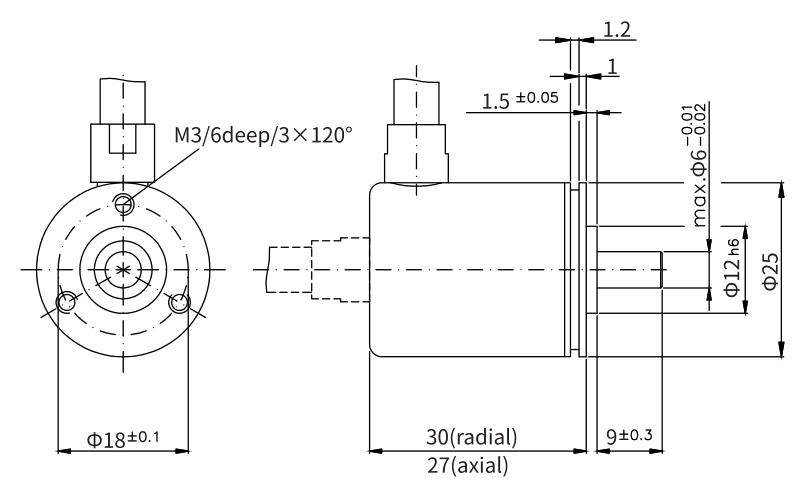

Overall dimensions

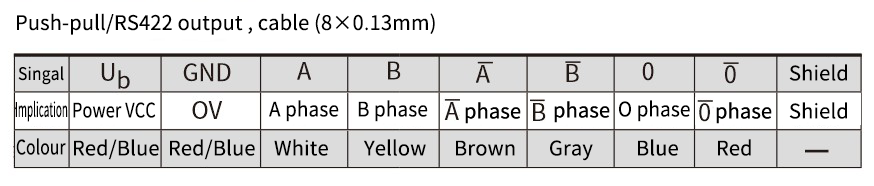

Wiring diagram
