FD100.10B-50X0

FD100.10B-50X0 incremental solid shaft encoder can be used in servo motor field, elevator field, industrial robot field, industrial automation control production line field, etc.

For detailed product selection, please contact us Return

Product features Technical data Shape & Wiring Downloads Accessories

Function & Features

High performance encoder with compact shape, outer diameter size of 50mm

The number of output pulses can reach 2500 when it is conventional

The signal output mode is push-pull output and RS422

Using glass code plate, can produce higher resolution output pulse

Short circuit protection

Basic parameters

Outside diameter50mm

Shaft diameterGeneral：8mm；Specific：10mm

Maximum speed of revolution10000 r

Maximum shaft loadAxial/radial：General 50N / 80N，
Specific 50N / 120N

Starting torque＜1.8Ncm

Moment of inertia＜5gcm2

Electrical parameters

Power supply5…30VDC；5VDC

Output singal5…30VDC：Push-pull； 5VDC：RS422

Working currentPush-pull：30mA；RS422：20mA

Resolution100，200，360，400，500，600，800，1000，
1024，1200，1500，1800，2000，2048，
2500

Output frequencyMax 300KHz

Electrical interfaceCable connection ：5×0.08mm²，0.5m
Connection：M23，12pin

Mechanical parameters

Flange typeGeneral：spannflansche / synchronous flange；
Specific：spannflansche

MaterialsShell：AL；Flange：AL；Shaft: stainless steel

WeightAbout 235g

Anti-VibrationIEC 68-2-6；100m/s² 10…2000HZ

Surge suppressionIEC 68-2-27；300m/s² 3ms

Environmental conditions

Operating temperature﹣10…+80℃

Storge temperature﹣25…+85℃

Protection classIP65

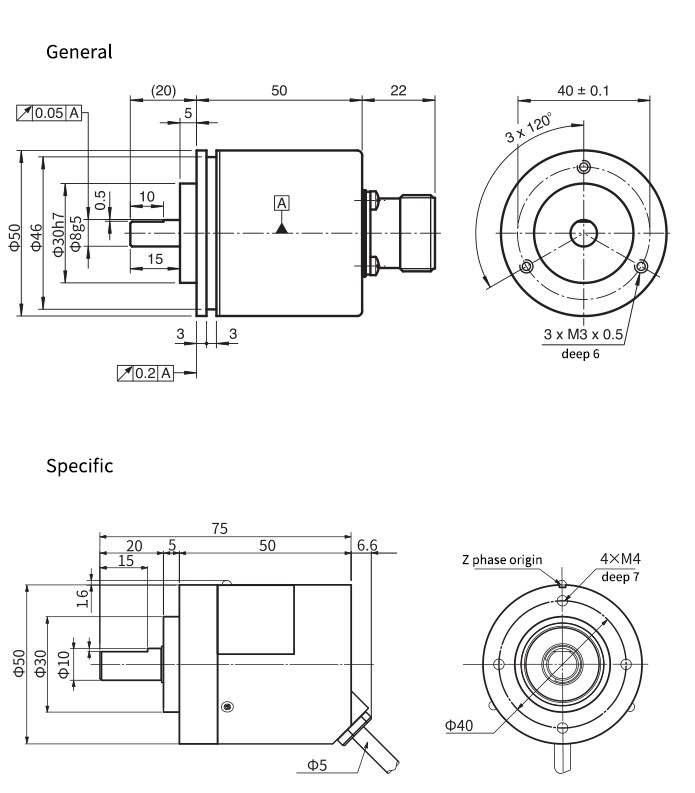

Overall dimensions

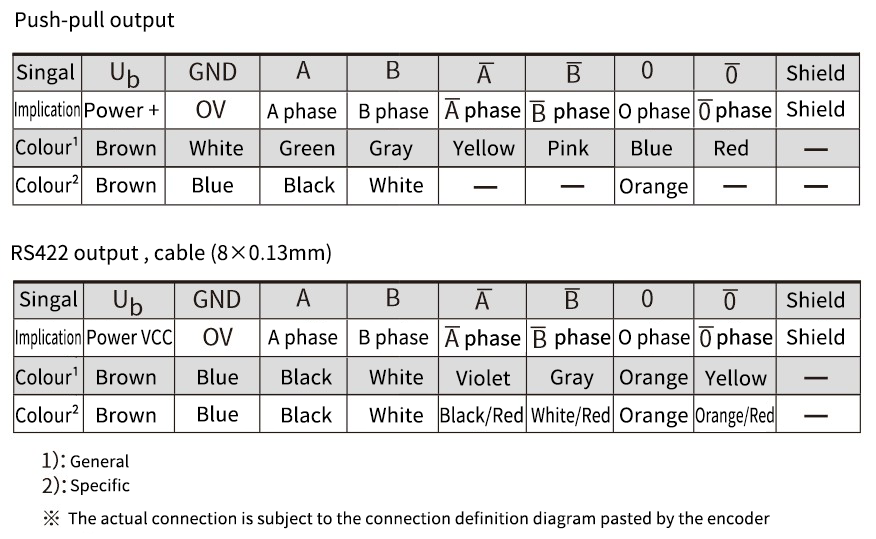

Wiring diagram
